For Station Wagon Model

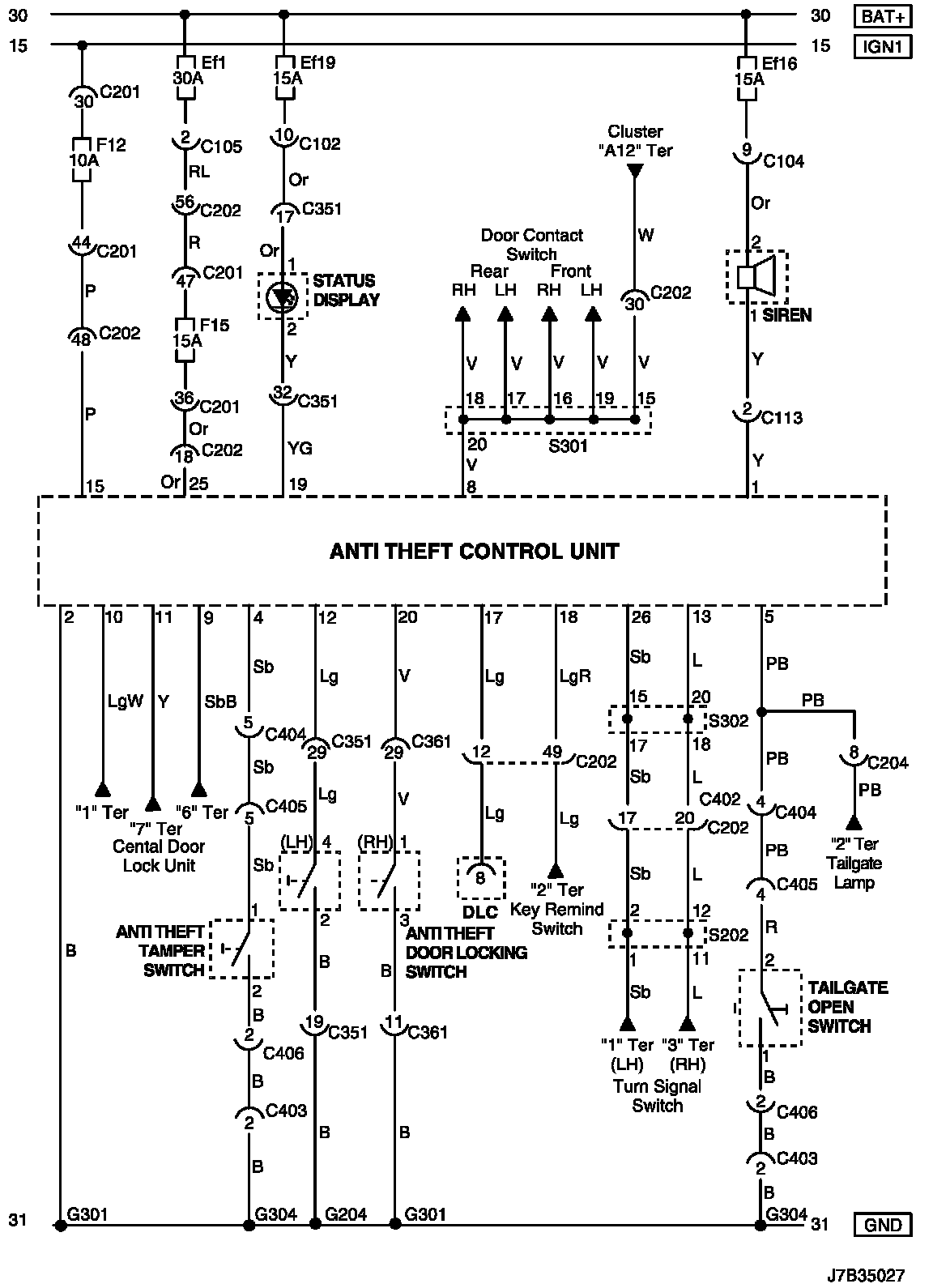

Anti Theft Control System Circuit Wiring Diagram (For STATION WAGON Model):
WIRING DIAGRAM
C102 - G304:

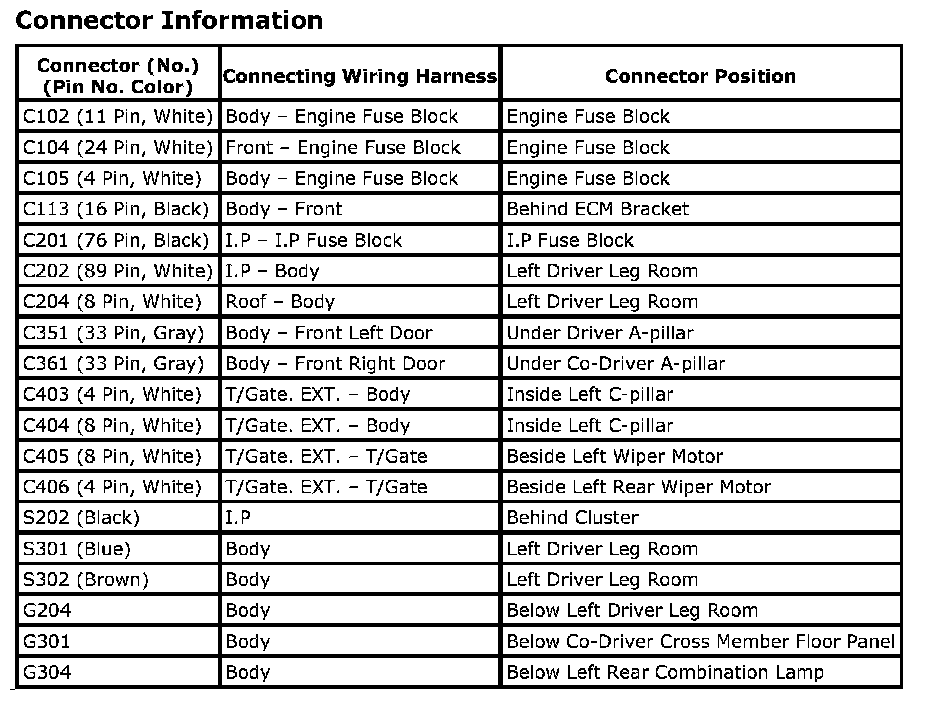

CONNECTOR INFORMATION

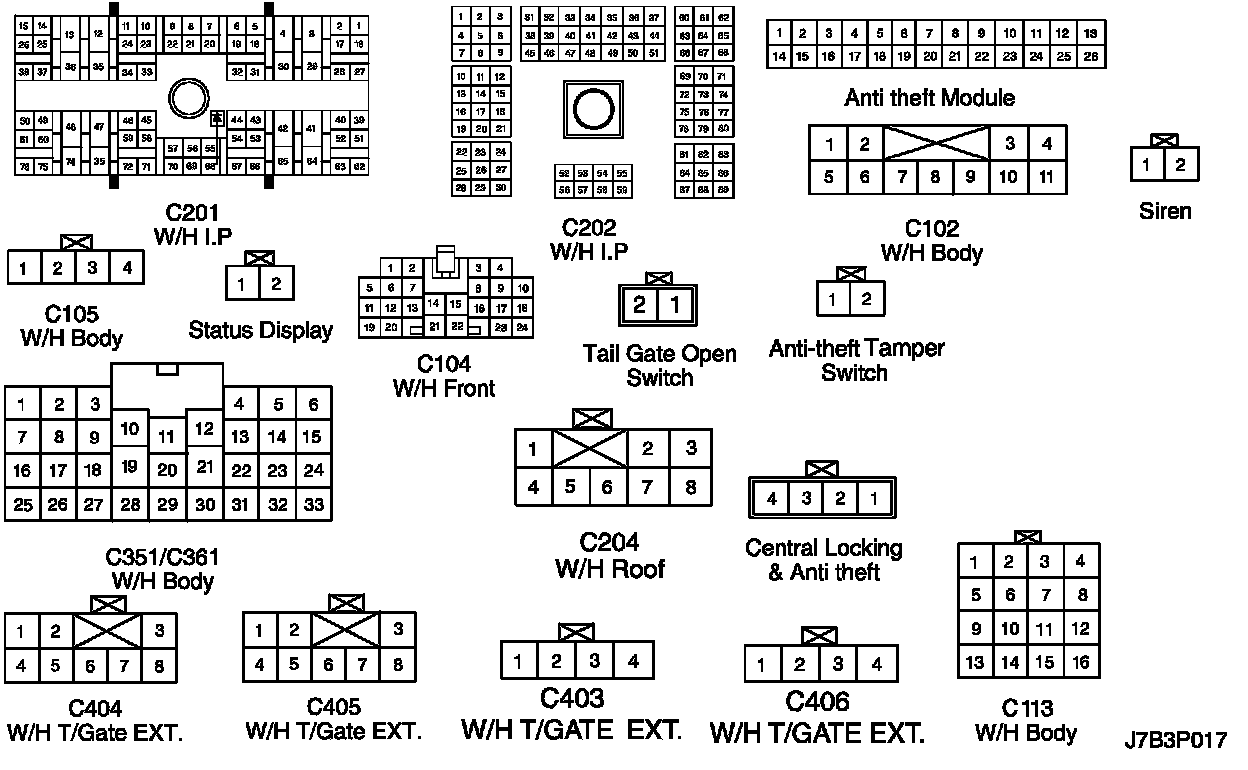

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

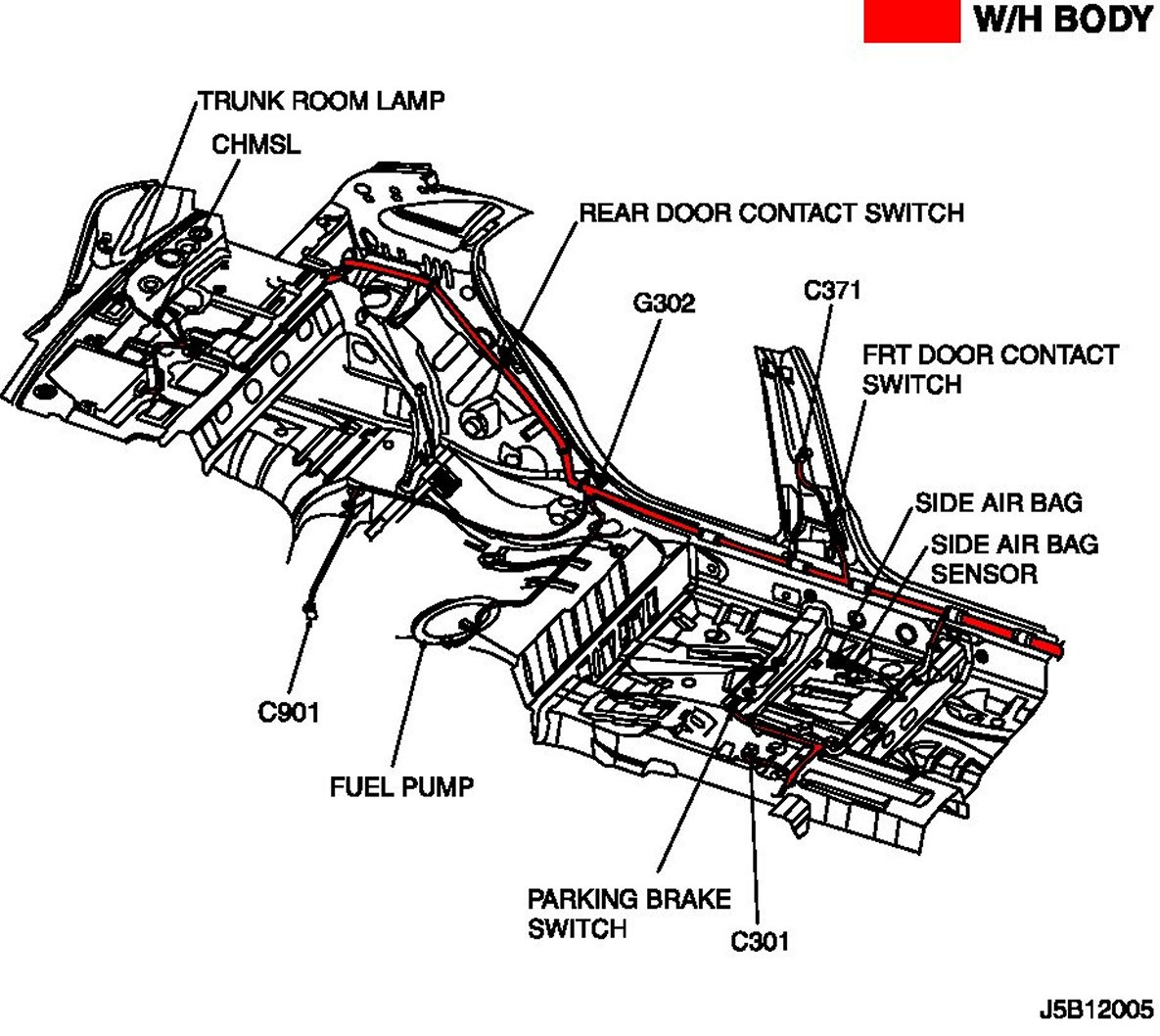

W/H Body:
POSITION OF CONNECTORS AND GROUNDS
S202:
S301 (Station Wagon):
S302 (Station Wagon):
SPLICE PACK
