Seat Cover: Service and Repair

Seat Covers Removal And Installation

Removal

WARNING: Do not uncover the passenger seat cover. Replace the passenger seat cushion as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the occupants classification system to operate improperly.


1. Remove the seatback and/or cushion.

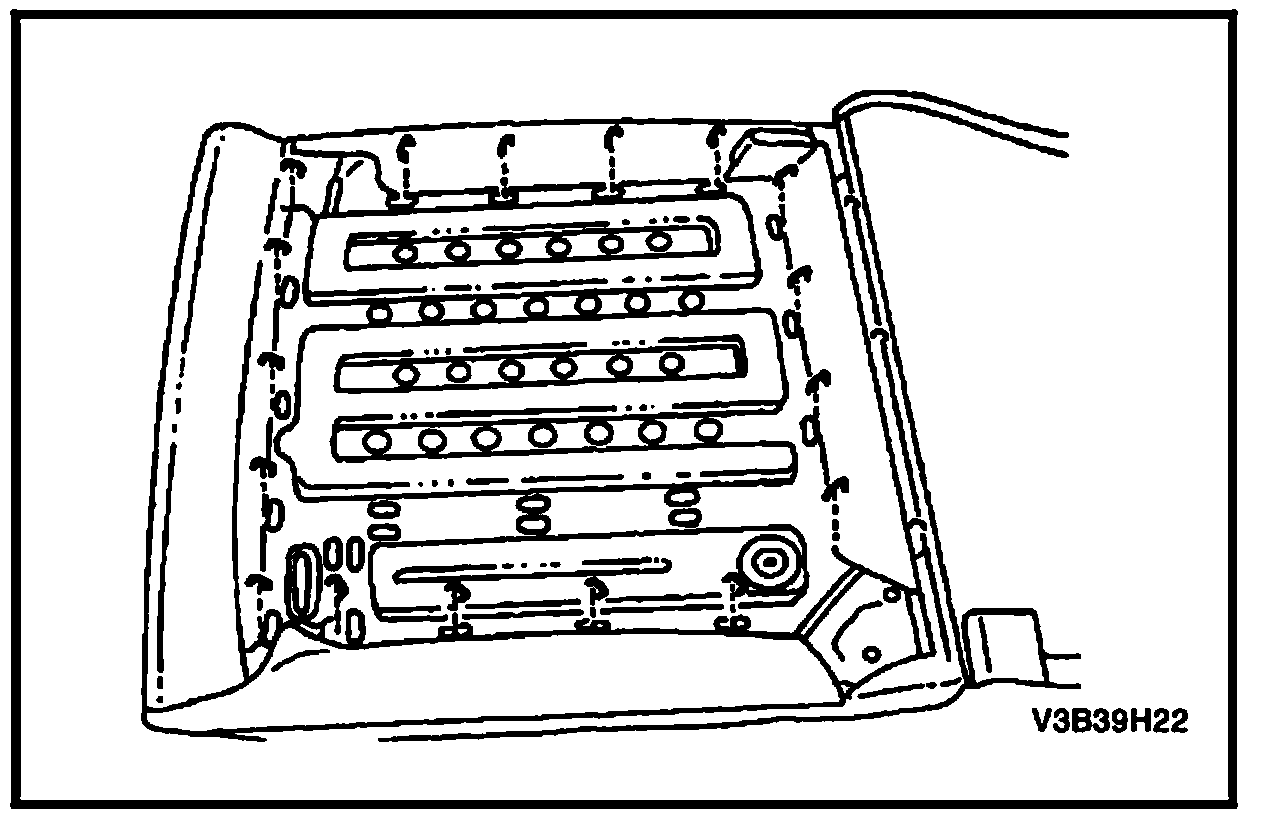

2. Remove the hog rings from the seatback and/or the cushion.
3. Remove the seat cover from the seatback and/or the cushion.







Installation

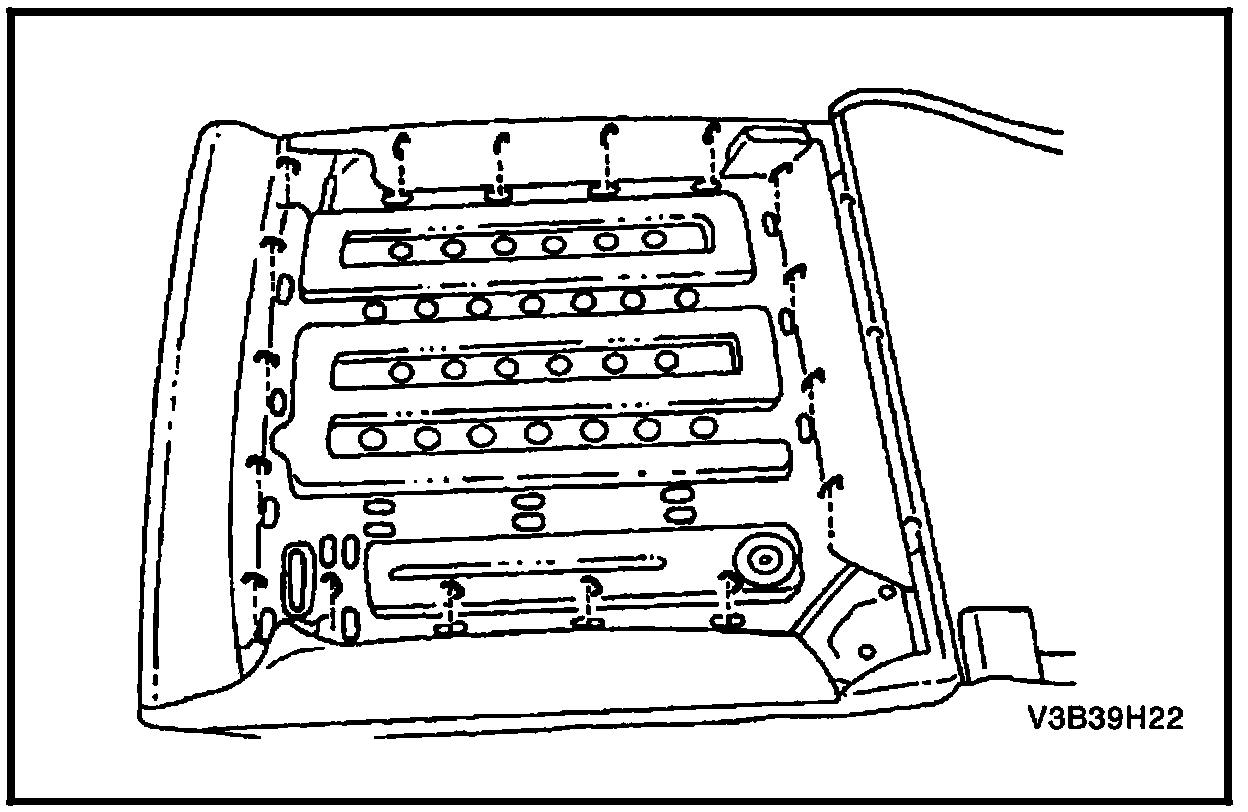

1. Install the seat cover onto the seatback and/or the cushion with new hog rings.
2. Install the seatback and/or the seat cushion.
