Front Seatback Removal and Installation

Front Seatback Removal And Installation

Removal

1. Remove the front bucket seat from the vehicle.

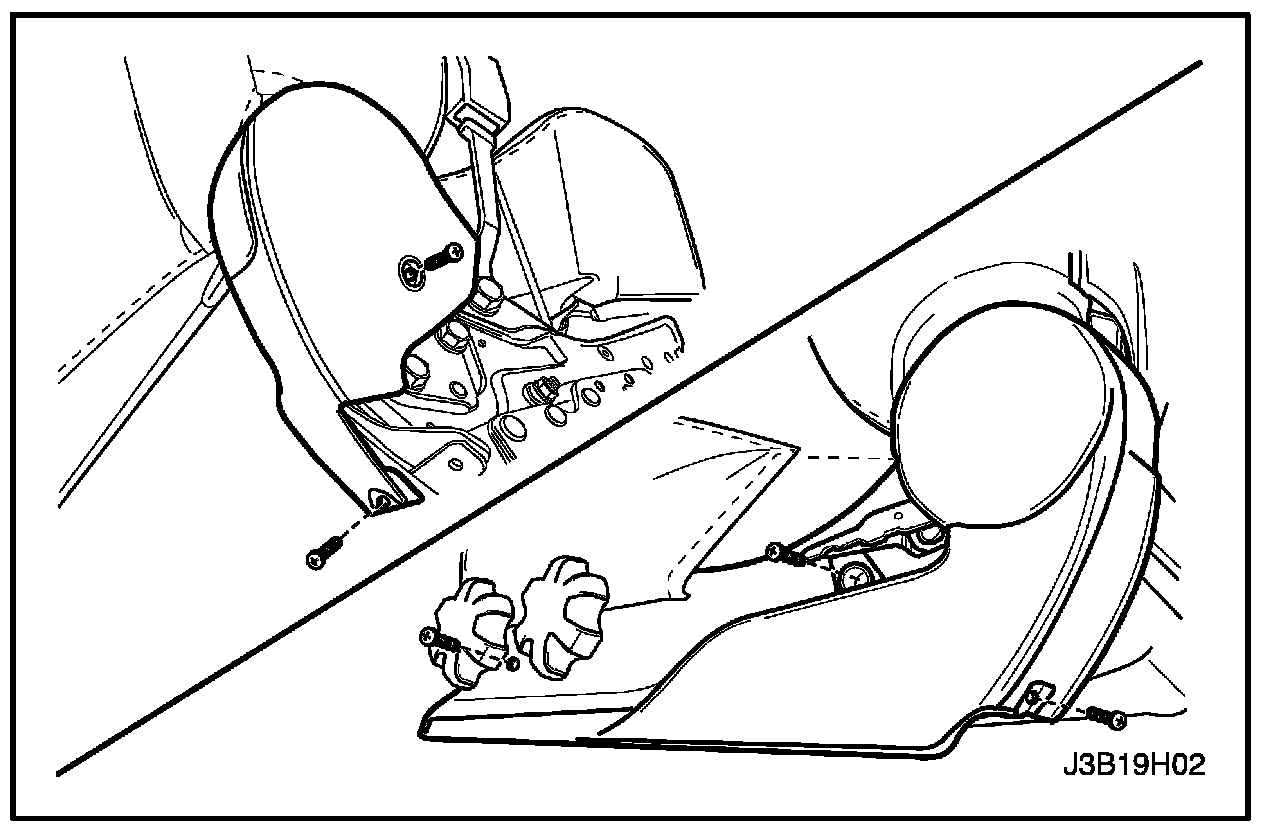

2. Remove the each seat trim.







3. Disconnect the electrical connectors.

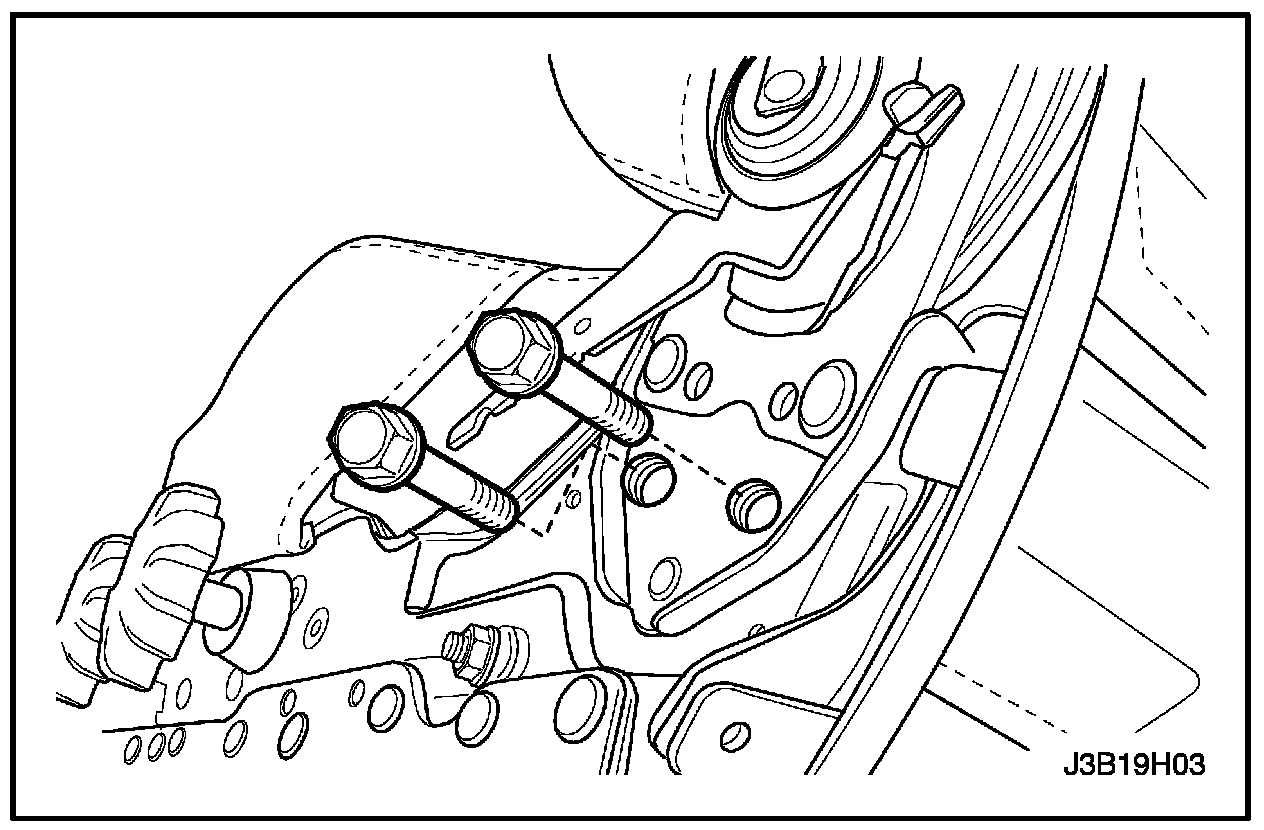

4. Remove the bolts and the seatback.







Installation

1. Install the seatback onto the seat cushion.
2. Install the front seatback bolts.

Tighten:
Tighten the front seatback bolts to 45 Nm (33 ft. lbs.).

3. Connect the electrical connectors.

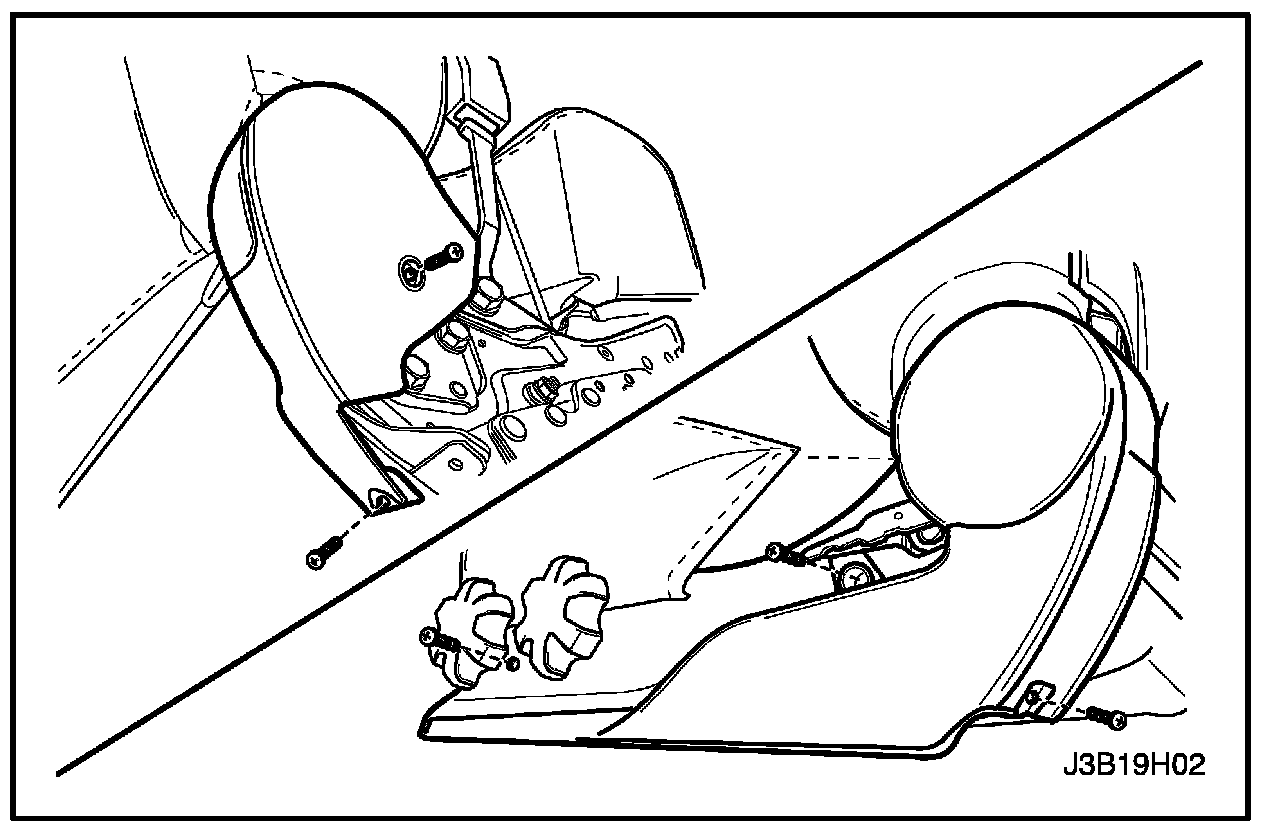

4. Install the seat trims to its original position.
5. Install the front bucket seat in the vehicle.
