Radiator Grille Removal And Installation (For NOTCHBACK And STATION WAGON Model)

Radiator Grille Removal And Installation (For NOTCHBACK And STATION WAGON Model)

Removal

1. Open the hood.

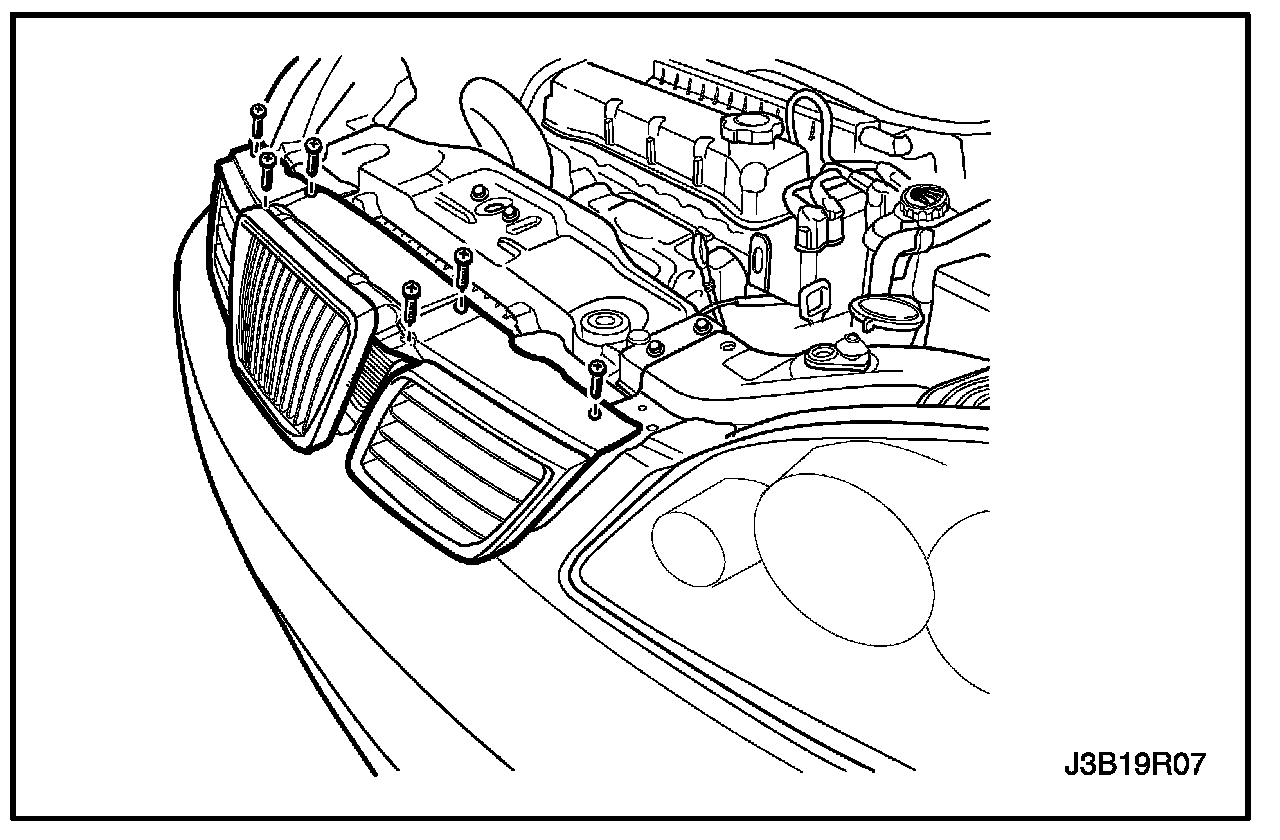

2. Remove the screws and clips at lower area of the radiator grille.







Installation

1. Install the radiator grille with the screws and clips.
