Oil Pump Assembly Disassembly and Assembly

Remove the oil pump housing bolts.
Using the plastic hammer. Take out the oil pump housing.
Installation Notice

Tighten:

Tighten the oil pump housing bolts 10 N.m (89 lb-in).

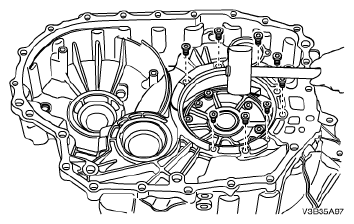

Fig 1: Identifying Oil Pump Housing Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the stator shaft bolts.

Fig 2: Identifying Stator Shaft Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Dismantle the oil pump gear, ring gear.
Installation should follow the removal procedure in the reverse order.

Fig 3: Identifying Oil Pump Gear And Ring Gear
Courtesy of SUZUKI OF AMERICA CORP.
