Drive Range - Second Gear: Notes

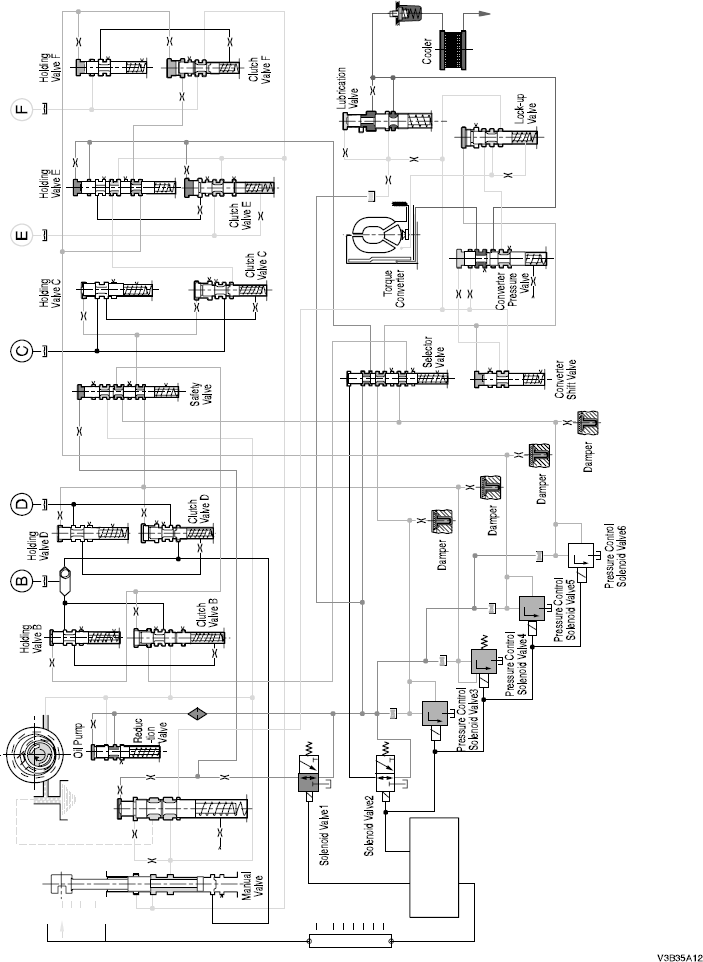

Fig 1: Power Flow Diagram - Drive Range (Second Gear)

Courtesy of SUZUKI OF AMERICA CORP.

In Drive 2, the transaxle drive is via the input shaft and clutch E. The elements of this transaxle function are as follows:

• Clutch E is applied to drive the front ring gear.
• The front ring gear drives the front planetary gear carrier.
• The front planetary gear carrier drives the differential pinion gear clockwise.
• Brake F is applied holding the front sun gear stationary.
