Tightening Torque Specifications
TORQUE SPECIFICATIONS
| Fastening part | Tightening torque | ||
|---|---|---|---|
| N.m | kgf-m | lb-ft | |
| Transmission oil drain plug | 23 | 2.3 | 17.0 |
| Oil filler plug | 23 | 2.3 | 17.0 |
| Extension case oil drain plug | 23 | 2.3 | 17.0 |
| Extension case oil filler plug | 23 | 2.3 | 17.0 |
| Control lever locating bolt | 10 | 1.0 | 7.5 |
| Case cover bolt | 10 | 1.0 | 7.5 |
| Control lever boot cover bolt | 12 | 1.2 | 9.0 |
| Back up light switch | 19 | 1.9 | 14.0 |
| Plate bolt | 23 | 2.3 | 17.0 |

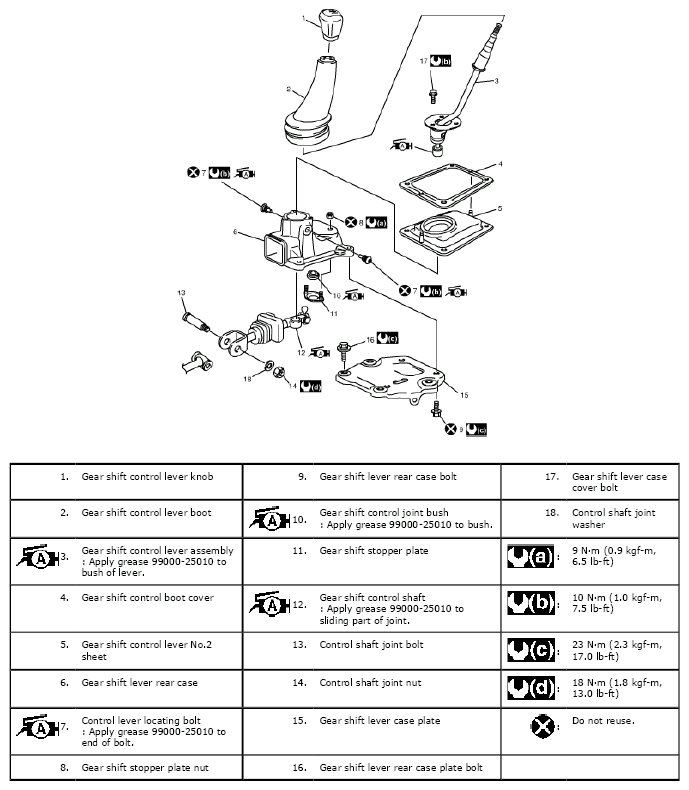

| Control shaft joint nut | 18 | 1.8 | 13.0 |
| Gear shift lever front case bolt | 23 | 2.3 | 17.0 |
| Engine rear mounting No. 1 bolt | 55 | 5.5 | 40.0 |
| Engine rear mounting member bolt | 55 | 5.5 | 40.0 |
| Engine rear mounting No. 2 bolt | 55 | 5.5 | 40.0 |
| Transmission to engine bolt and nut | 85 | 8.5 | 61.5 |
| Clutch housing lower plate bolt | 11 | 1.1 | 8.0 |
| Low gear shift inverse lever bolt | 23 | 2.3 | 17.0 |
| Transmission case bolt | 23 | 2.3 | 17.0 |
| Reverse shaft bolt | 23 | 2.3 | 17.0 |
| Gear shift locating bolt | 23 | 2.3 | 17.0 |
| Adapter case bolt | 23 | 2.3 | 17.0 |
| Input shaft 5th hub nut | 210 | 21.0 | 152.0 |
| Countershaft front bearing nut | 210 | 21.0 | 152.0 |
| Extension case bolt | 23 | 2.3 | 17.0 |
