Manual Transmission Front Case Disassembly And Assembly: Assembly

Set new oil seal to front case with its spring side facing rear case side.
Install oil seal until it becomes flush with case surface using special tool and hammer and apply grease to oil seal lip.
Special Tool
1. 09940-51710
: Grease 99000-25010SUZUKI Super Grease A

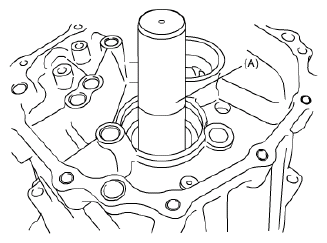

Fig 1: Identifying Special Tool Into Front Case
Courtesy of SUZUKI OF AMERICA CORP.
Install pump seal to front case using special tool and hammer.
Special Tool
1. 09913-75810

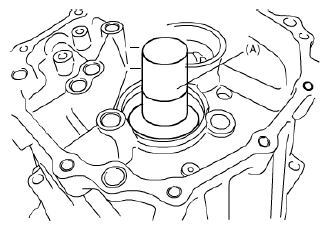

Fig 2: Identifying Special Tool On Pump Seal To Front Case
Courtesy of SUZUKI OF AMERICA CORP.
