Manual Transmission Adapter Case Disassembly And Assembly: Disassembly

Remove oil seal (1) from adapter case using special tool.

Special Tool

  1. 09913-50121

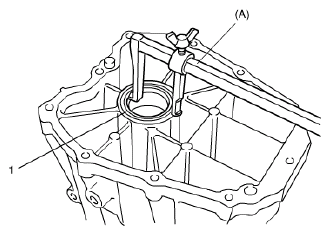

    Fig 1: Identifying Special Tool On Oil Seal From Adapter Case
    G04809002Courtesy of SUZUKI OF AMERICA CORP.
