Rear Shock Absorber Removal And Installation: Removal

Hoist vehicle, allowing rear suspension to hang free.
Remove wheel.
Support lower arm (1) with jack (2) and remove shock absorber bolts (3).

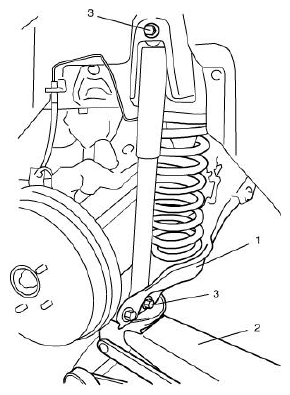

Fig 1: Lifting Support Lower Arm With Jack
Courtesy of SUZUKI OF AMERICA CORP.
Compress the shock absorber enough to remove it from body.

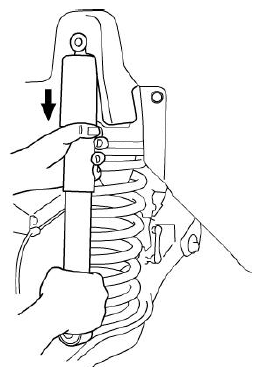

Fig 2: Compressing Shock Absorber
Courtesy of SUZUKI OF AMERICA CORP.
