Rear Shock Absorber Removal And Installation: Installation

Install shock absorber by reversing removal procedure, noting the following instructions.

Tightening torque

Shock absorber upper bolt a: 60 N.m (6.0 kg-m, 43.5 lb-ft)

Shock absorber lower bolt b: 90 N.m (9.0 kg-m, 65.0 lb-ft)

Wheel nut: 100 N.m (10.0 kg-m, 72.5 lb-ft)

CAUTION:

If reuse shock absorber bolts, apply engine oil to thread, bearing and trunk surface.
Shock absorber bolts must be tightened in non-loaded condition.

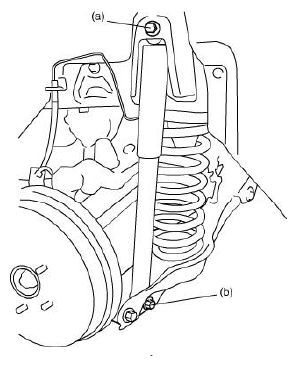

Fig 1: Shock Absorber Bolt With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
