Brake Drums And Shoes Inspection

Check rear brake drums and brake linings for excessive wear and damage, while wheels and drums are removed. At the same time, check wheel cylinders for leaks. Replace these parts as necessary.

For details, refer to REAR BRAKE DRUM AND SHOE INSPECTION .

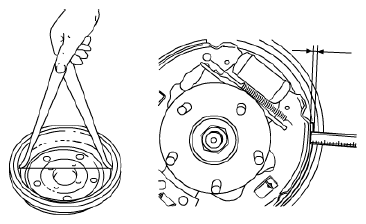

Fig 1: Checking Rear Brake Drums & Brake Linings For Excessive Wear

Courtesy of SUZUKI OF AMERICA CORP.
