Radiator Cooling Fan Low Speed Control System Check: Wiring Diagram

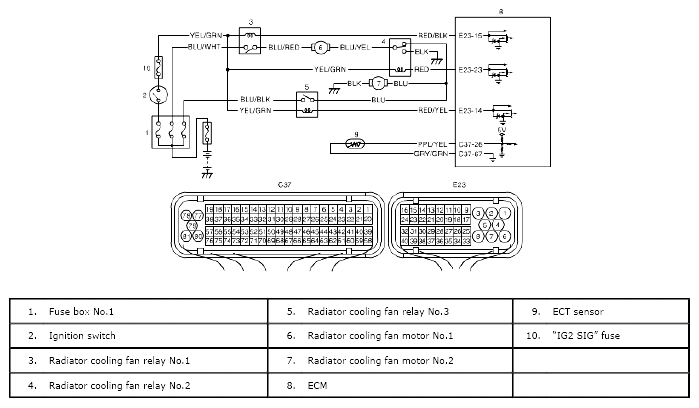

Fig 1: Identifying Radiator Cooling Fan Low Speed Control System Check Wiring Diagram
G04824719Courtesy of SUZUKI OF AMERICA CORP.
