DTC P2282: Air Leak between Throttle Body and Intake Valves: Wiring Diagram

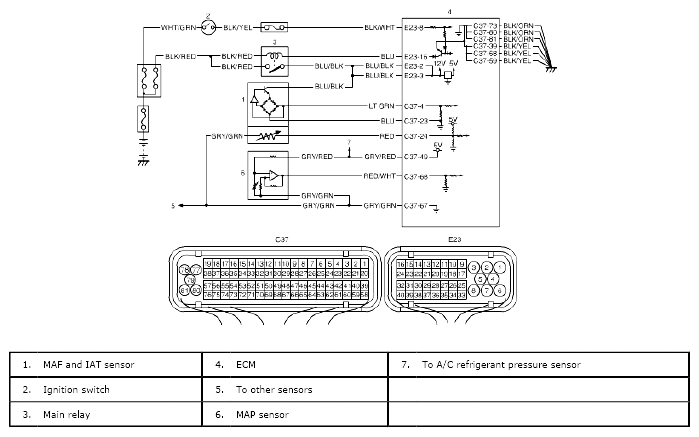

Fig 1: Identifying Air Leak Between Throttle Body & Intake Valves Wiring Diagram
G04824673Courtesy of SUZUKI OF AMERICA CORP.
