DTC P2122/P2123: Pedal Position Sensor (Main) Circuit Low/High: Wiring Diagram

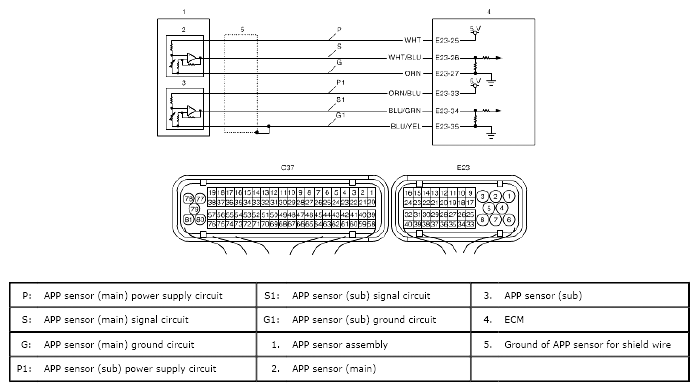

Fig 1: Identifying Pedal Position Sensor (Main) Circuit Low/High Wiring Diagram
G04824665Courtesy of SUZUKI OF AMERICA CORP.
