System and Wiring Diagram

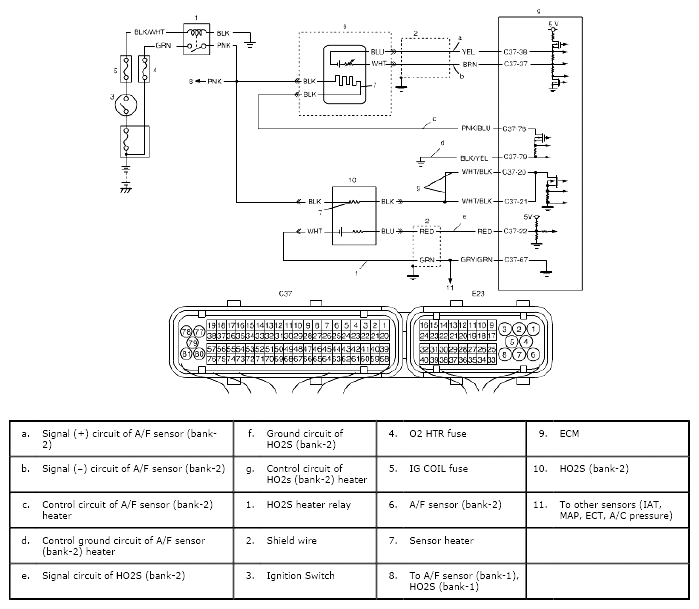

Fig 1: Identifying Post Catalyst Fuel Trim System Too Lean/Too Rich (Sensor-2, Bank-2) Wiring Diagram
G04824661Courtesy of SUZUKI OF AMERICA CORP.
