DTC P0616/P0617: Starter Relay Circuit Low/High: Wiring Diagram

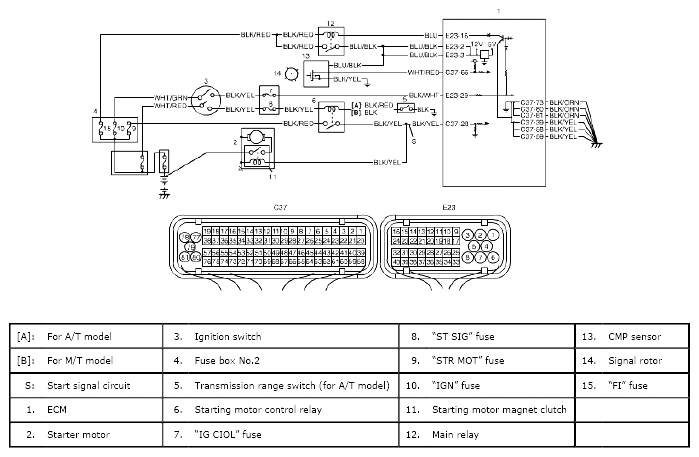

Fig 1: Identifying Starter Relay Circuit Low/High Wiring Diagram
G04824650Courtesy of SUZUKI OF AMERICA CORP.
