DTC P0506/P0507: Idle Air Control System RPM Lower than Expected/Higher than Expected: Wiring Diagram

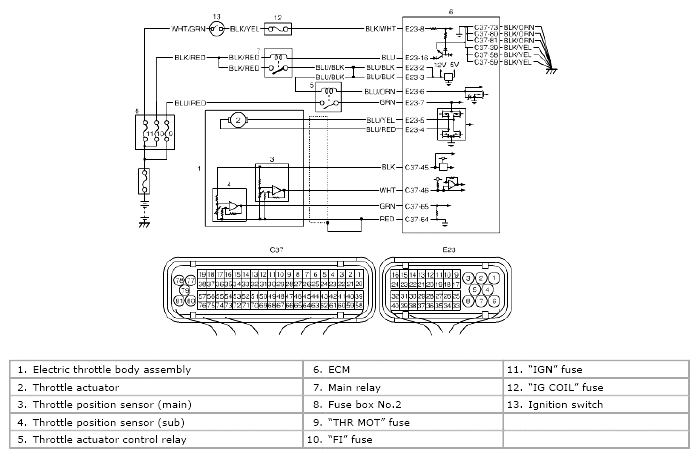

Fig 1: Identifying Idle Air Control System RPM Lower Than Expected/Higher Than Expected Wiring Diagram
G04824648Courtesy of SUZUKI OF AMERICA CORP.
