DTC P0480/P0481/P0482: Fan 1/Fan 2/Fan 3 Control Circuit: Wiring Diagram

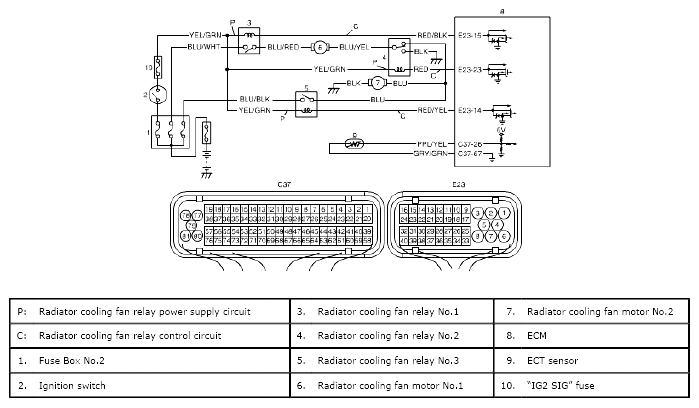

Fig 1: Identifying Fan 1/Fan 2/Fan 3 Control Wiring Diagram
G04824646Courtesy of SUZUKI OF AMERICA CORP.
