DTC P0449: Evaporative Emission System Vent Valve Circuit
>>
System/Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System/Wiring Diagram

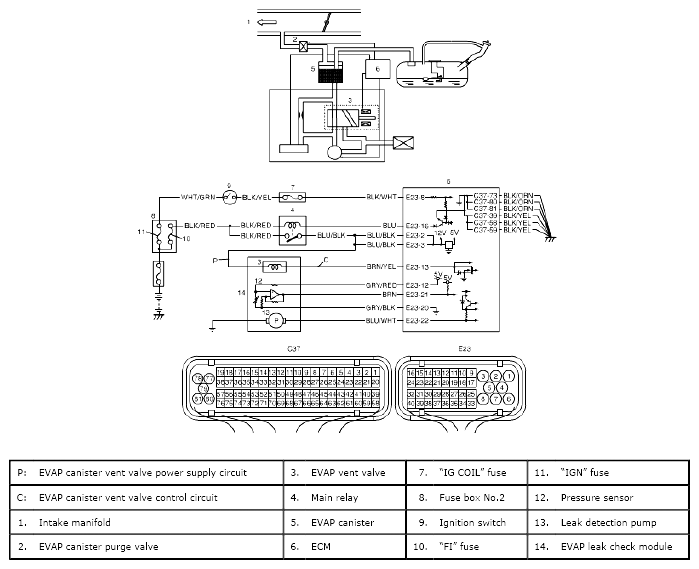

Fig 1: Identifying Evaporative Emission System Vent Valve Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
