DTC P0340: Camshaft Position Sensor Circuit: Wiring Diagram

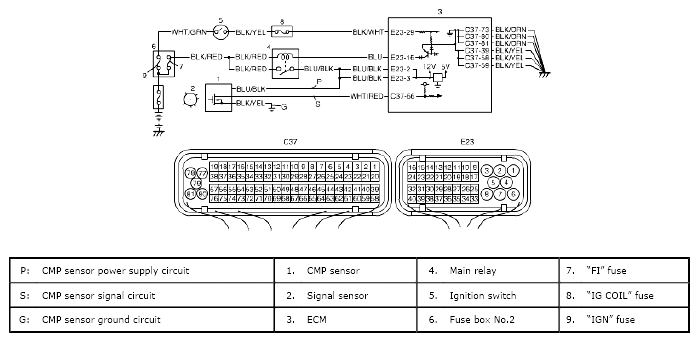

Fig 1: Identifying Camshaft Position Sensor Wiring Diagram
G04824639Courtesy of SUZUKI OF AMERICA CORP.
