DTC P0335: Crankshaft Position Sensor Circuit: Wiring Diagram

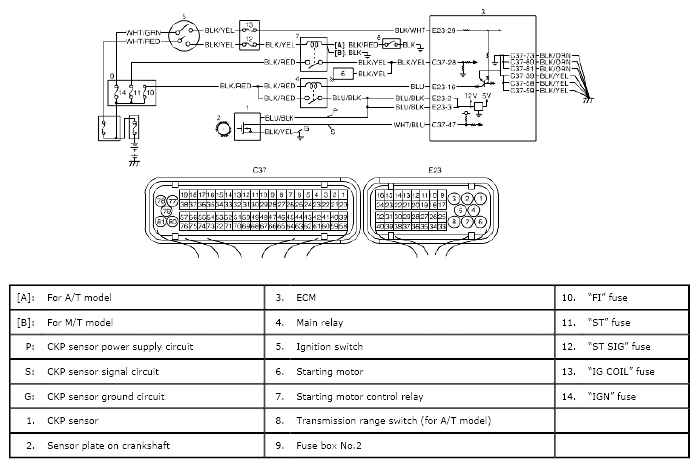

Fig 1: Identifying Crankshaft Position Sensor Wiring Diagram
G04824638Courtesy of SUZUKI OF AMERICA CORP.
