System and Wiring Diagram

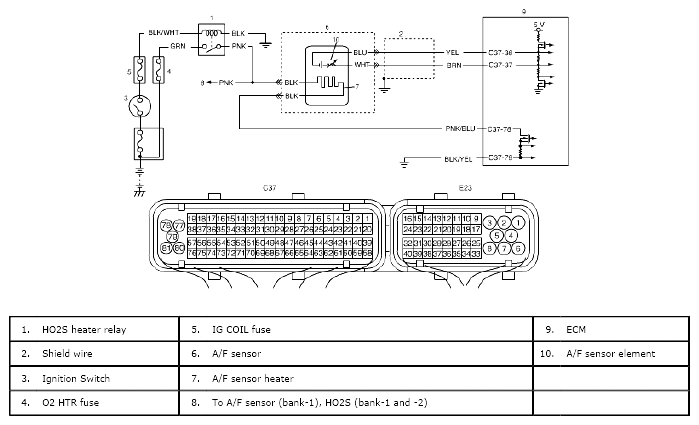

Fig 1: Identifying System Too Lean/Too Rich (Sensor-1, Bank-2) Wiring Diagram
G04824635Courtesy of SUZUKI OF AMERICA CORP.
