DTC P0107/P0108: Manifold Absolute Pressure Sensor Circuit Low/High Input: Wiring Diagram

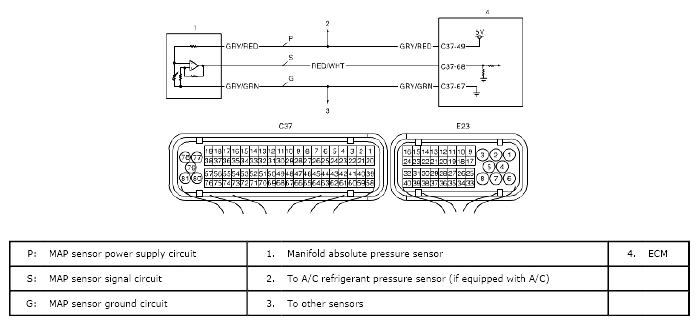

Fig 1: Identifying Manifold Absolute Pressure Sensor Circuit Low/High Input Wiring Diagram
G04824623Courtesy of SUZUKI OF AMERICA CORP.
