Audio System Component Location

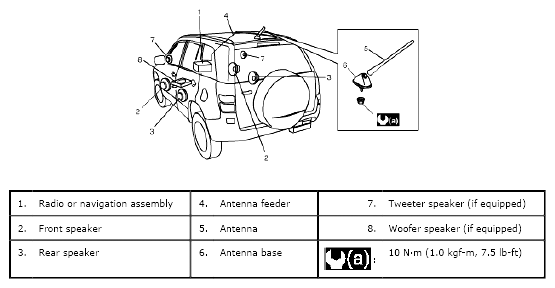

Fig 1: Identifying Audio System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
