Passenger Compartment

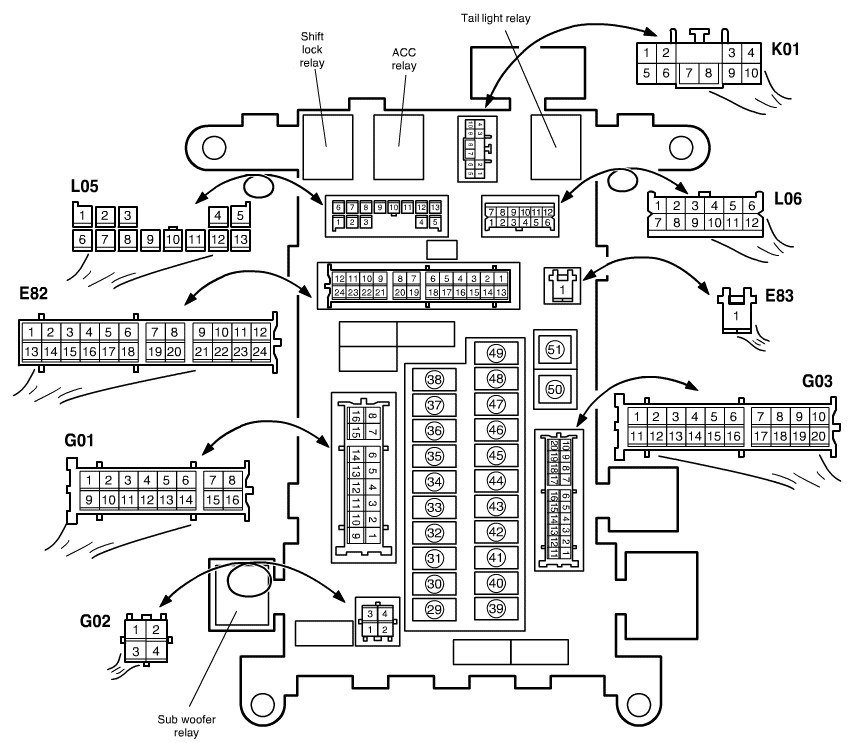

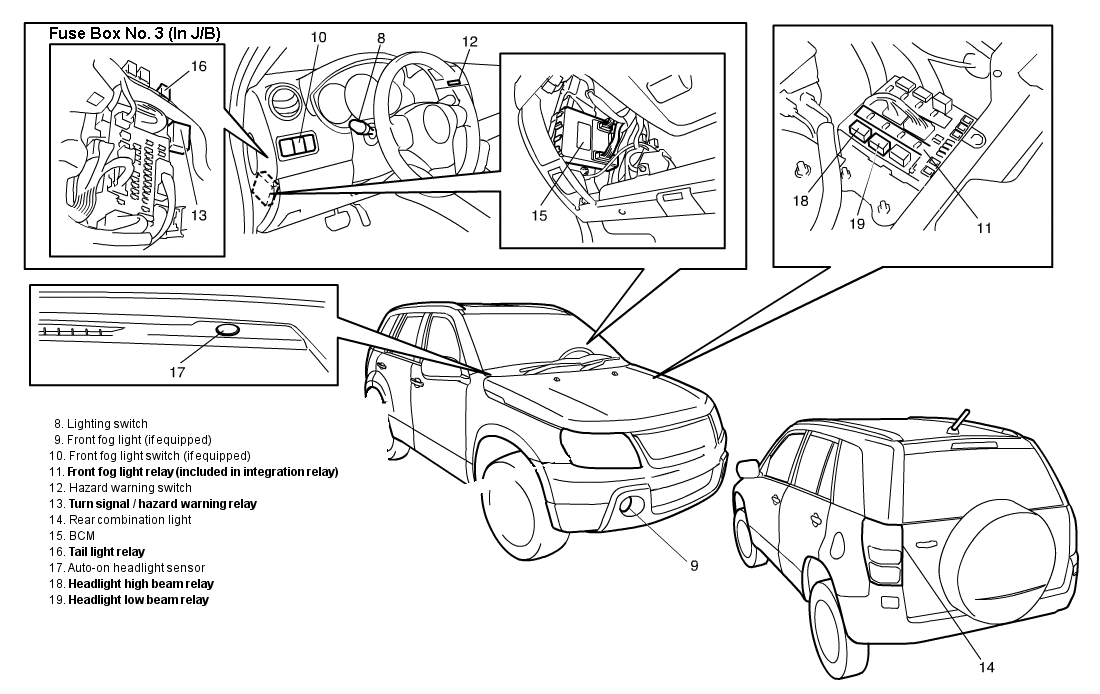

Fuse Box No. 3 Assignments
| Fuse No. | Amps | Description on Fuse Box Cover | Protected Circuit |
|---|---|---|---|
| 29 | 15 A | A/B | A/B SDM |
| -- | -- | -- | Occupancy classification ECM |
| 30 | 10 A | ABS/ESP® | ABS control module |
| -- | -- | -- | ESP® control module |
| -- | -- | -- | Steering angle sensor |
| 31 | 10 A | BACK | KLS ECM |
| -- | -- | -- | Back-up light switch |
| -- | -- | v | Transmission range sensor |
| 32 | 15 A | IG2 SIG | Radiator fan relay #1 |
| -- | -- | -- | Radiator fan relay #2 |
| -- | -- | -- | Radiator fan relay #3 |
| -- | -- | -- | A/C compressor relay |
| -- | -- | -- | Seat heater switch (Driver side) |
| -- | -- | -- | Seat heater switch (Passenger side) |
| -- | -- | -- | Sliding roof unit |
| -- | -- | -- | Heater motor relay |
| 33 | 20 A | WIP | COMB switch |
| -- | -- | -- | Windshield washer motor |
| -- | -- | -- | Windshield wiper motor |
| -- | -- | -- | Rear washer motor |
| -- | -- | -- | Rear wiper motor |
| -- | -- | -- | Rear wiper relay |
| 34 | 15 A | ACC2 | Cigar lighter (ACC Socket #3) |
| 35 | 10 A | CRUISE | Brake light switch |
| -- | -- | -- | Steering switch |
| 36 | 15 A | ACC3 | ACC socket #1 |
| -- | -- | -- | ACC socket #2 |
| 37 | 7.5 A/15A | RR FOG/RADIO | BLANK |
| 38 | 15 A | STOP | Brake light switch |
| 39 | 20 A | IG COIL | Generator |
| -- | -- | -- | IG coil #1 |
| -- | -- | -- | IG coil #2 |
| -- | -- | -- | IG coil #3 |
| -- | -- | -- | IG coil #4 |
| -- | -- | -- | IG coil #5 |
| -- | -- | -- | IG coil #6 |
| -- | -- | -- | Noise filter |
| -- | -- | -- | ECM |
| -- | -- | -- | Fuel pump relay |
| -- | -- | -- | Heated oxygen relay |
| -- | -- | -- | A/T relay |
| -- | -- | -- | ICM |
| -- | -- | -- | 4WD control module |
| 40 | 10 A | METER | BCM |
| -- | -- | -- | COMB meter |
| -- | -- | -- | Turn signal relay |
| -- | -- | -- | Auto A/C unit |
| -- | -- | -- | Passenger A/B off sensor |
| 41 | 15 A | ACC | ACC relay |
| -- | -- | -- | BCM |
| -- | -- | -- | Power mirror switch |
| -- | -- | -- | KLS ECM |
| -- | -- | -- | Audio |
| -- | -- | -- | Multi information display |
| -- | -- | -- | Sub woofer relay |
| 42 | 20 A | D/L | BCM |
| 43 | 10 A | TAIL | Tail light relay |
| 44 | 15 A | DOME | Audio |
| -- | -- | -- | Auto A/C unit |
| -- | -- | -- | ECM |
| -- | -- | -- | DLC |
| -- | -- | -- | TCM |
| -- | -- | -- | BCM |
| -- | -- | -- | Main switch |
| -- | -- | -- | KLS ECM |
| -- | -- | -- | Multi information display |
| -- | -- | -- | COMB meter |
| -- | -- | -- | Interior light |
| -- | -- | -- | Rear interior light |
| -- | -- | -- | Console light |
| -- | -- | -- | Luggage compartment light |
| -- | -- | -- | Curtain light (Driver side) |
| -- | -- | -- | Curtain light (Passenger side) |
| -- | -- | -- | Steering angle sensor |
| 45 | 25 A | S/R | Sliding roof unit |
| 46 | 20 A | RR BLW | BLANK |
| 47 | 7.5 A | ST SIG | Starting motor relay |
| 48 | 15 A | HAZ | Turn signal relay |
| 49 | 7.5 A | VANITY | Vanity light (Driver side) |
| -- | -- | -- | Vanity light (passenger side) |
| 50 | 30 A | P/W | Front power window main switch |
| -- | -- | -- | Front power window sub switch |
| -- | -- | -- | Rear power window sub switch (R) |
| -- | -- | -- | Rear power window sub switch (L) |
| 51 | 20 A | P/W T | BLANK |
