Battery Dismounting And Remounting: Remounting

  1. Reverse removal procedure.
  2. Torque battery cables securely.
    NOTE: Check to be sure that ground cable has enough clearance to hood panel by terminal.

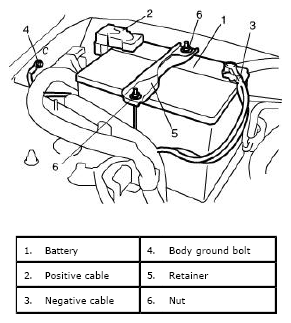

    Fig 1: Identifying Battery, Retainer, Negative Cable & Positive Cable
    G04807713Courtesy of SUZUKI OF AMERICA CORP.
