Body Electrical Control System Wiring Circuit Diagram

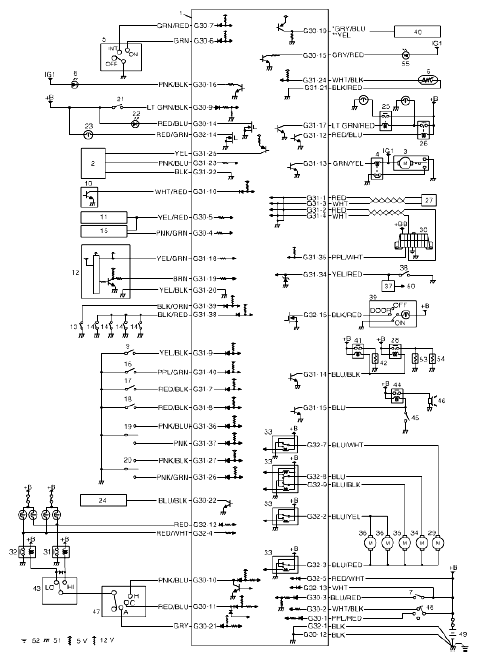

Fig 1: Identifying Body Electrical Control System Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.

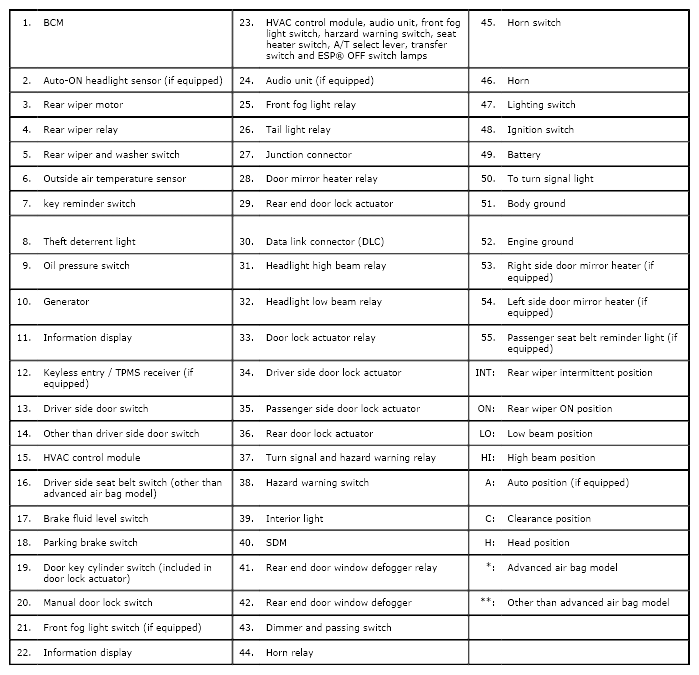

Fig 2: Identifying Body Electrical Control System Reference Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
