BCM Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Remove steering column hole cover (1).
  3. Disconnect connectors from BCM.
  4. Remove BCM (2).

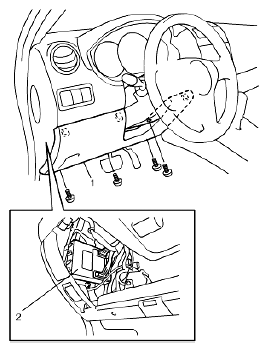

    Fig 1: Identifying Steering Column Hole Cover & BCM
    G04825299Courtesy of SUZUKI OF AMERICA CORP.
