Serial Data Link Circuit Check: Wiring Diagram

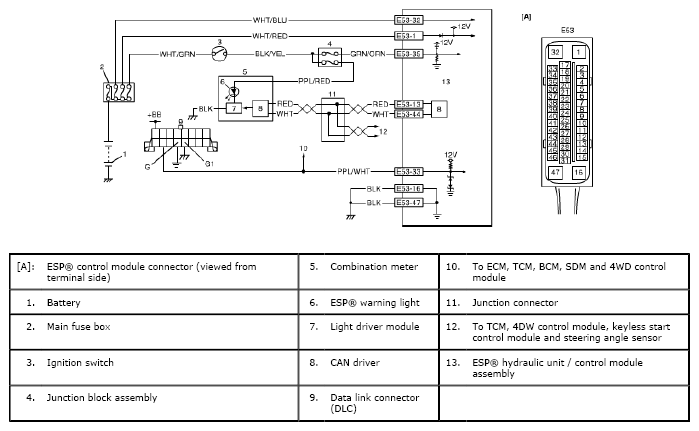

Fig 1: Identifying Serial Data Link Circuit Wiring Diagram
G04824757Courtesy of SUZUKI OF AMERICA CORP.
