No DTC Detection After Performing DTC Check: Wiring Diagram

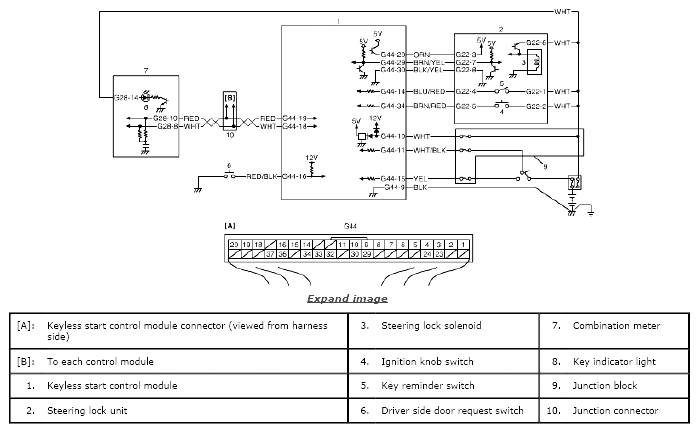

Fig 1: Identifying DTC Detection Wiring Diagram
G04825347Courtesy of SUZUKI OF AMERICA CORP.
