Transmission Fluid Temperature Sensor Inspection

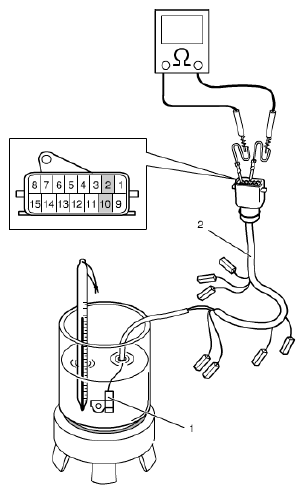

Immerse transmission fluid temperature sensor (1) in water or oil. Check transmission fluid temperature sensor resistance between terminals of connector. Thus make sure its resistance decreases as temperature rises.
Transmission fluid temperature sensor resistance
10°C (50°F): 6.445 kΩ
25°C (77°F): 3.5 kΩ
110°C (230°F): 0.247 kΩ
