Oil Cooler Hoses Replacement

When replace them, make sure to note the followings.

• to replace clamps at the same time
• to insert hose as far as bulge of pipe
• to clamp hose securely

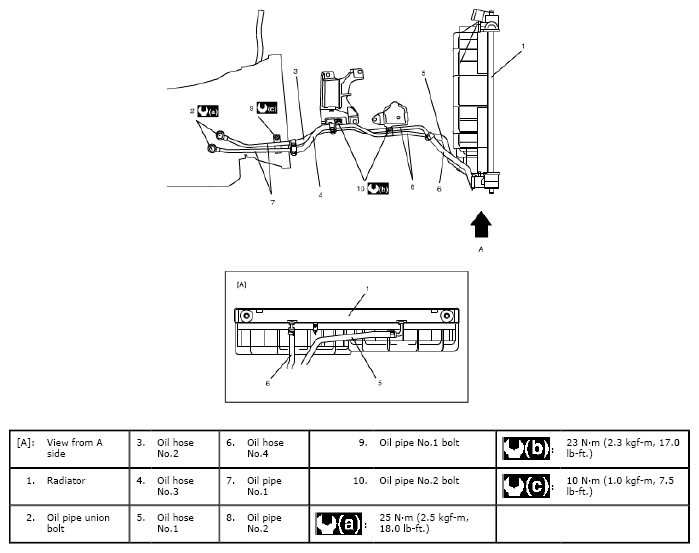

  Fig 1: Identifying Oil Cooler Hoses Clamps (With Tightening Specifications)

  Courtesy of SUZUKI OF AMERICA CORP.
