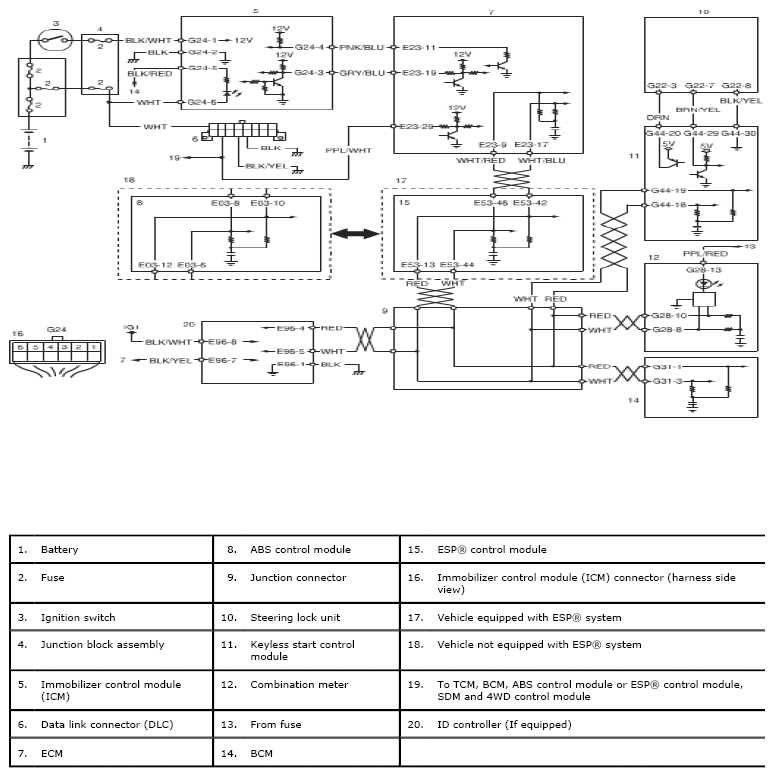

Immobilizer Control System Wiring Circuit Diagram
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For more details about power supply and ground wire circuits for ECM, BCM, ABS control module, keyless start control module and combination meter, refer to WIRING SYSTEMS
.
