Manual Transmission Front Case Disassembly and Assembly

Manual Transmission Front Case Disassembly and Assembly
Disassembly

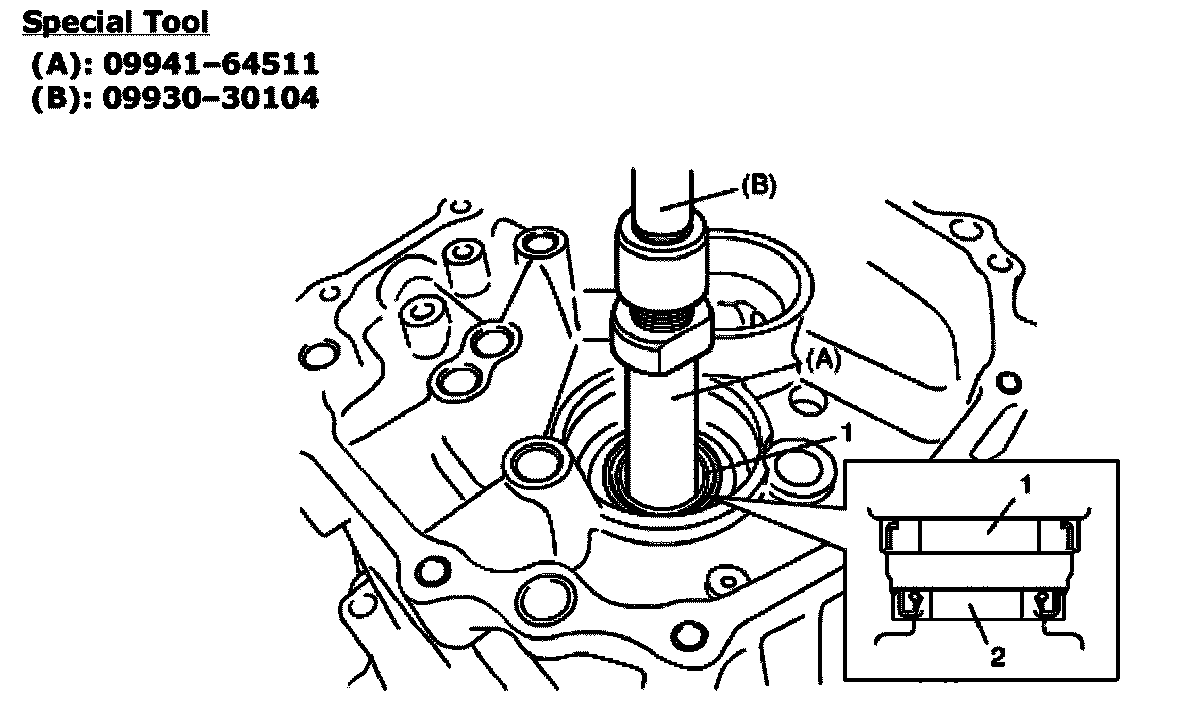

Remove pump seal (1) and oil seal (2) from front case using special tools.





Assembly
1. Set new oil seal to front case with its spring side facing rear case side.

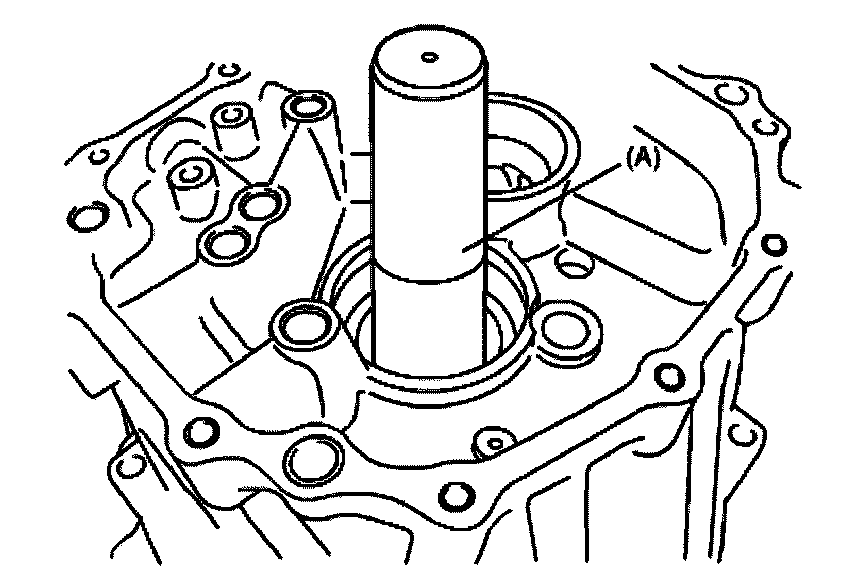

2. Install oil seal until it becomes flush with case surface using special tool and hammer and apply grease to oil seal lip.

Special Tool (A): 09940-51710

Grease 99000-25010SUZUKI Super Grease A

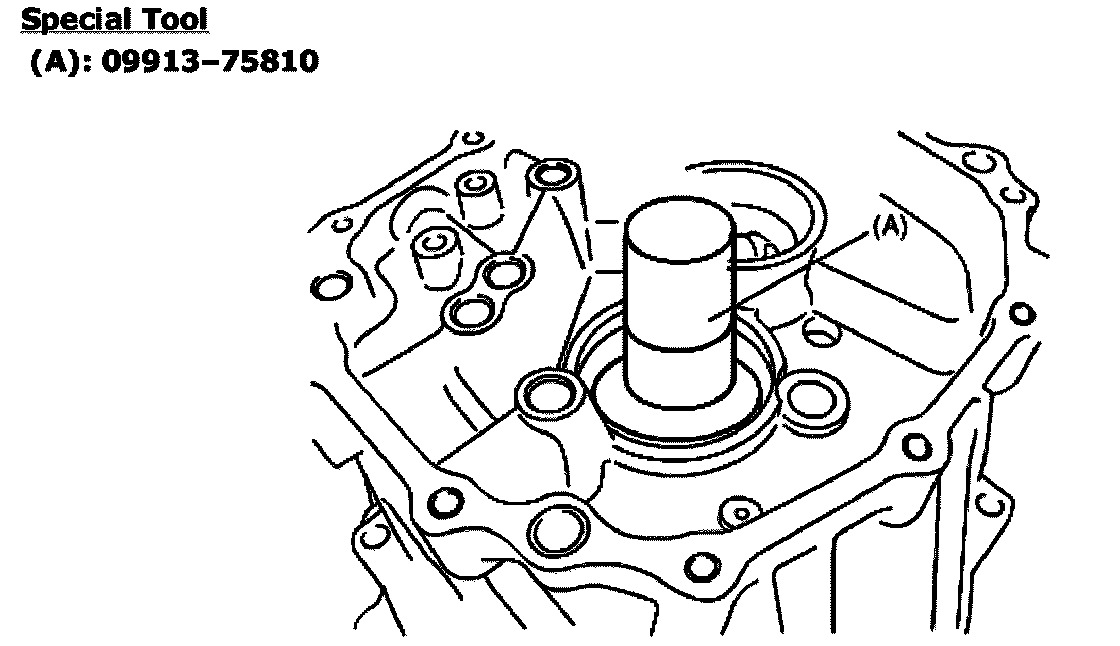

3. Install pump seal to front case using special tool and hammer.
