Engine Rear Mounting Replacement

Engine Rear Mounting Replacement

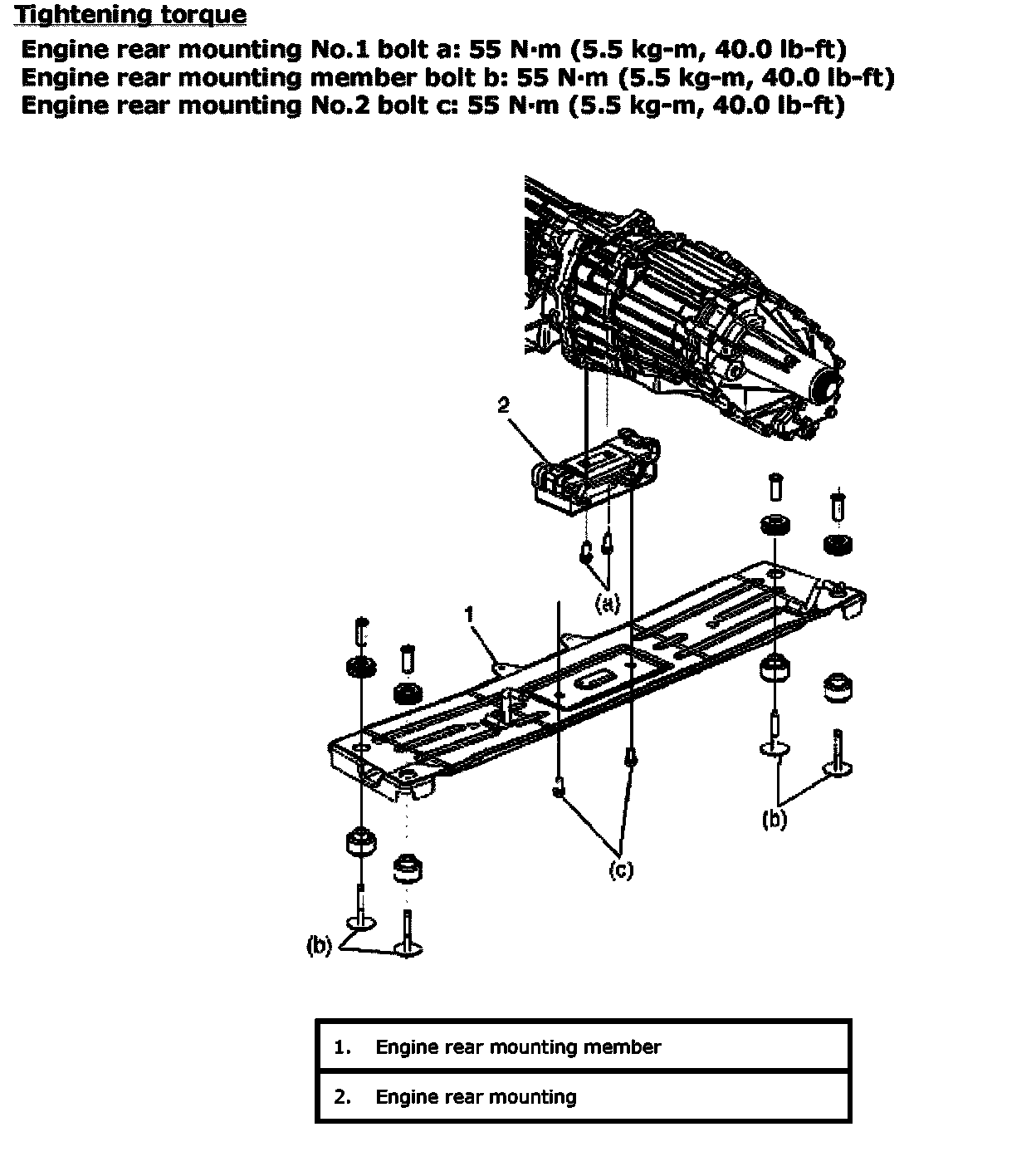

When replacement of mounting parts are necessary, torque bolts as specified below.
