Fluid Line/Hose: Service and Repair

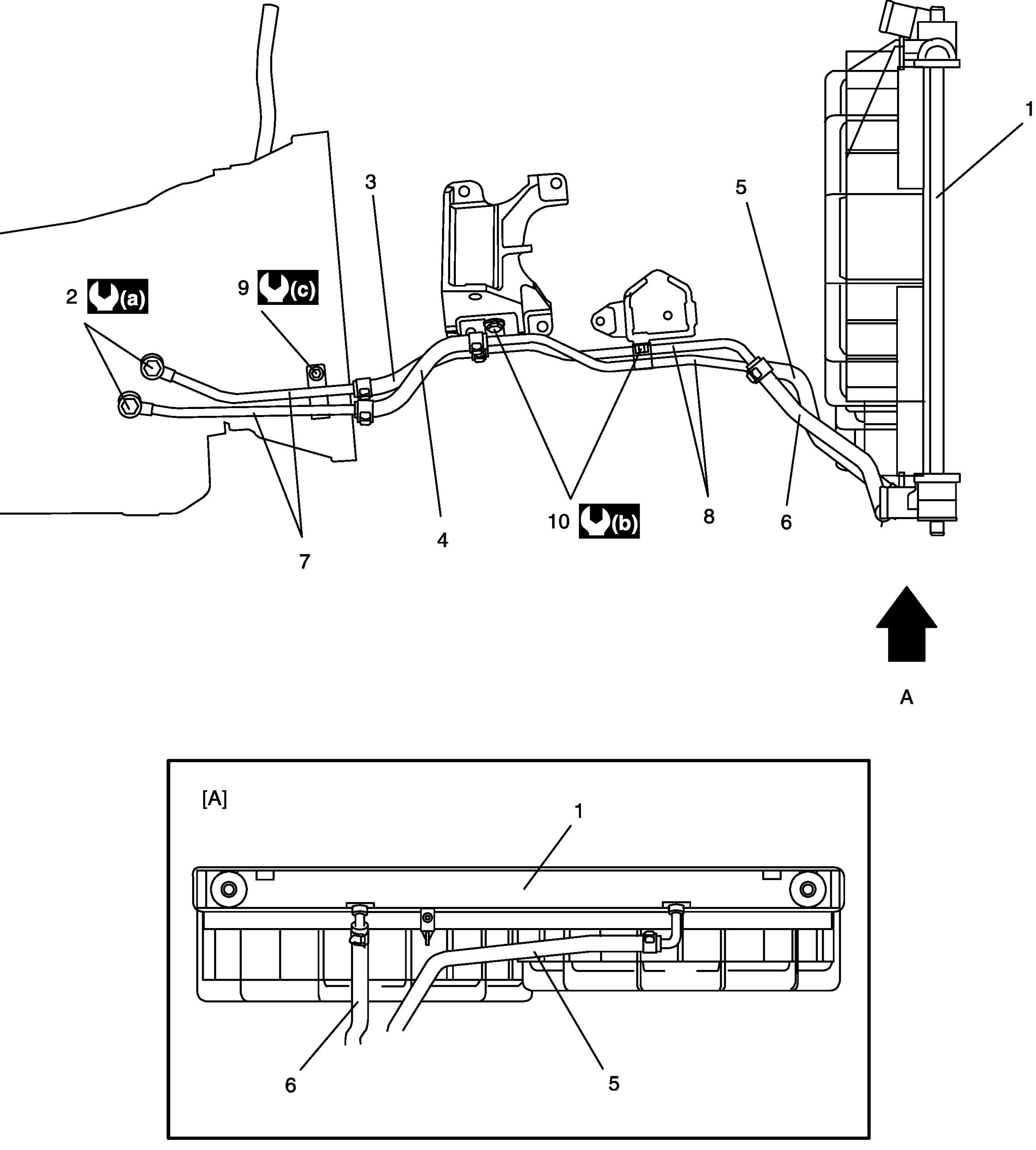

Oil Cooler Hoses Replacement
When replace them, make sure to note the followings.
^ to replace clamps at the same time
^ to insert hose as far as bulge of pipe
^ to clamp hose securely
