Select Cable Adjustment

Select Cable Adjustment
1. Remove manual selector.

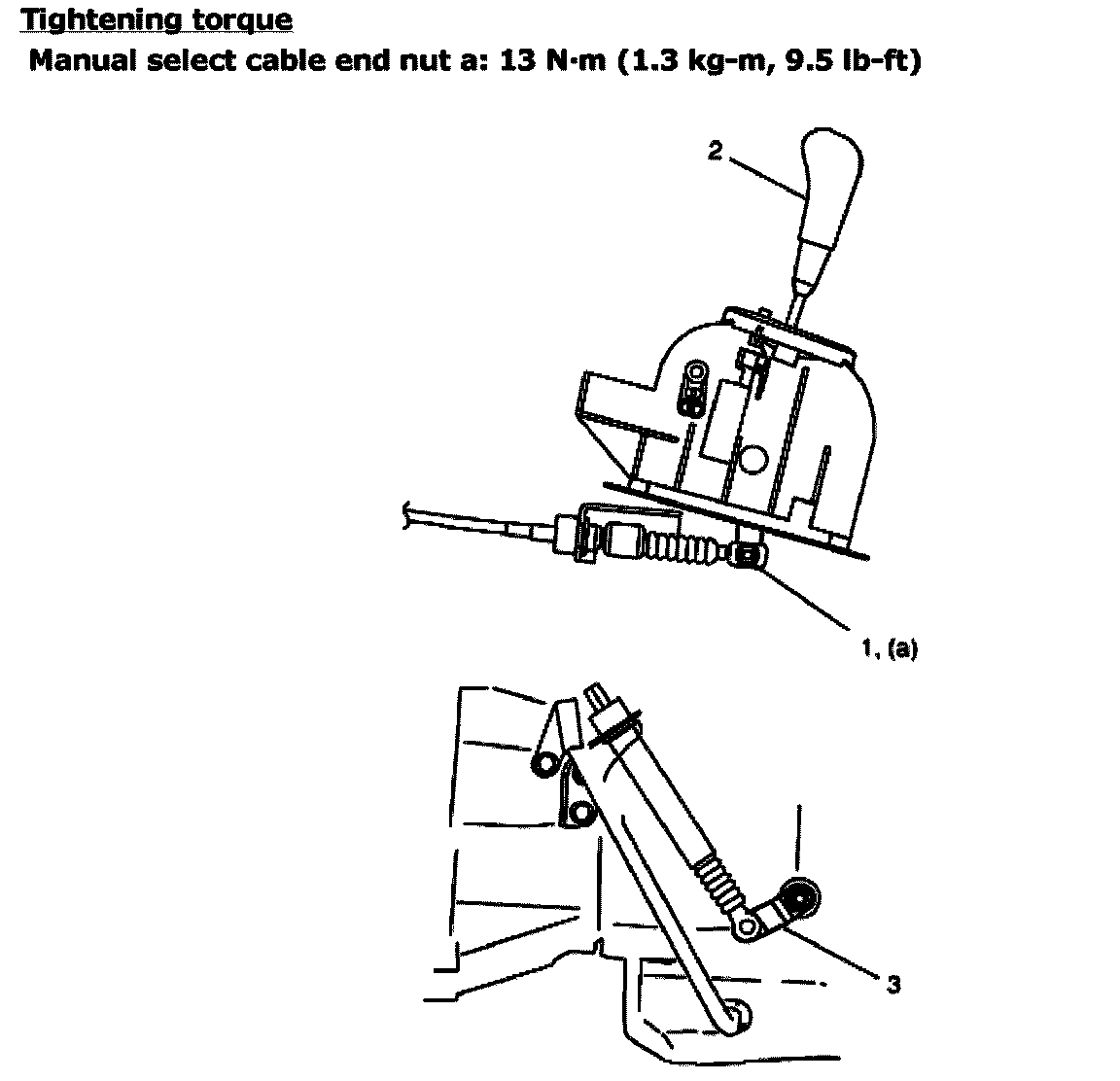

2. Loosen manual select cable end nut (1).
3. Shift select lever (2) and manual select lever (3) to N.
4. Tighten manual select cable end nut (1) to specified torque.





5. After select cable was installed, check for the following.
^ Push vehicle with selector lever shifted to P. Vehicle should not move.
^ Vehicle can not be driven in N.
^ Vehicle can be driven in D, 4 and L.
^ Vehicle can be backed in R.
