Lighting - Revised Headlamp Replacement And Aiming
GRAND VITARASection Title: Body, Cab & Accessories
TSB No. TS 24 03277
Division: Automotive
Category: Technical
SUBJECT:
EARLY TYPE (VOL) AND LATE TYPE (VOR) HEADLIGHT UNIT
SERVICING AND REPLACEMENT
SERVICE MANUAL UPDATE: HEADLIGHT AIMING
MODEL(S):
GRAND VITARA (JB627)
YEAR:
2007
AFFECTED VIN(S):
J53TD941474202336~
J53TD944974202391~
J53TD945074200523~
J53TD947074202340~
J53TD94V974202044~
J53TE941774202120~
J53TE944674203236~
J53TE947374201180~
J53TE94V874201352~
CONDITION:
Beginning with the VINS listed above there has been a production change of the headlight units from the "early type (VOL) to the "late type (VOR)". This change requires a new headlight alignment procedure. These headlight unit types should not be mixed when replacement is required.
CAUSE:
The headlight beam of the early and late type headlight unit is different requiring a different aiming procedure.
CORRECTION:

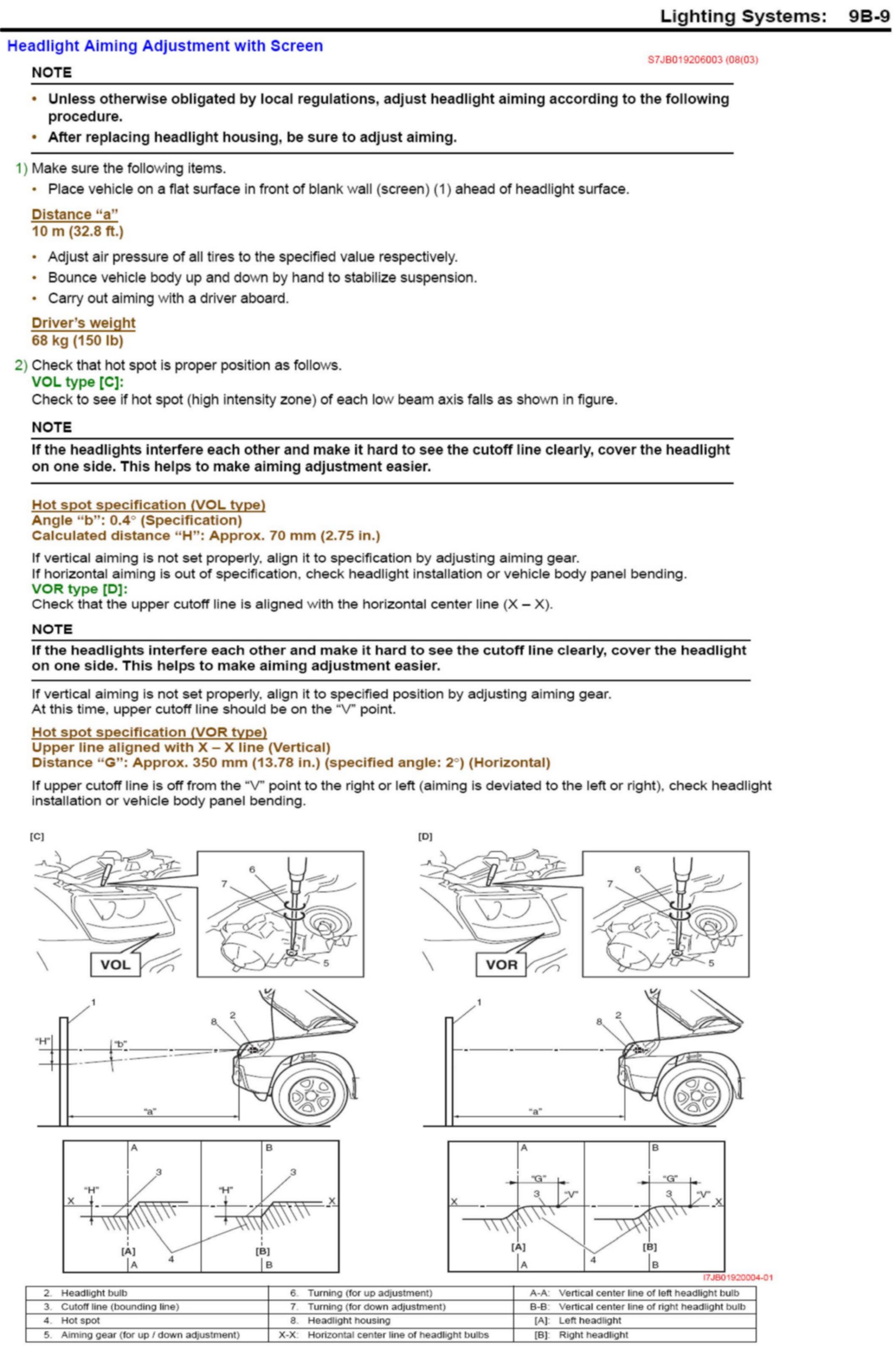

Please note identification procedure below to identify which headlight unit applies to the vehicle being serviced. The headlight units should not be mixed, unless replaced as a set. By following the identification procedure the correct alignment procedure can be followed. Please add the attached service manual page 9B-9 to the appropriate section of your printed service manuals and disregard the old "Headlight Aiming Adjustment with Screen" section of the service manual.

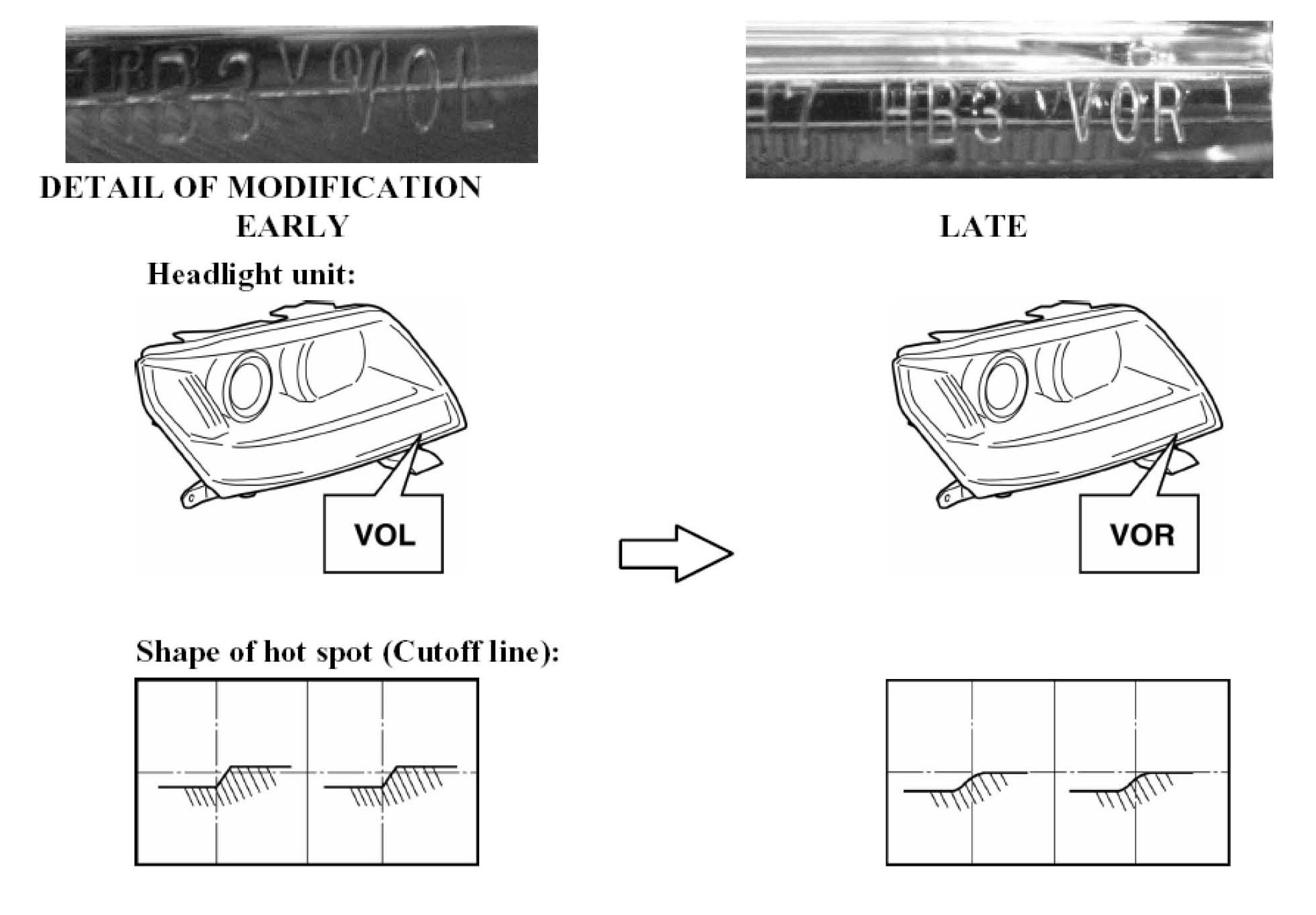

Headlight unit type identification
PARTS SUPPLY DATA
CAUTION:
When replacing the headlight, make sure that the one used for replacement is the same type ("VOL" or "VOR").
AFFECTED SERVICE MANUAL(S)
