F Connectors

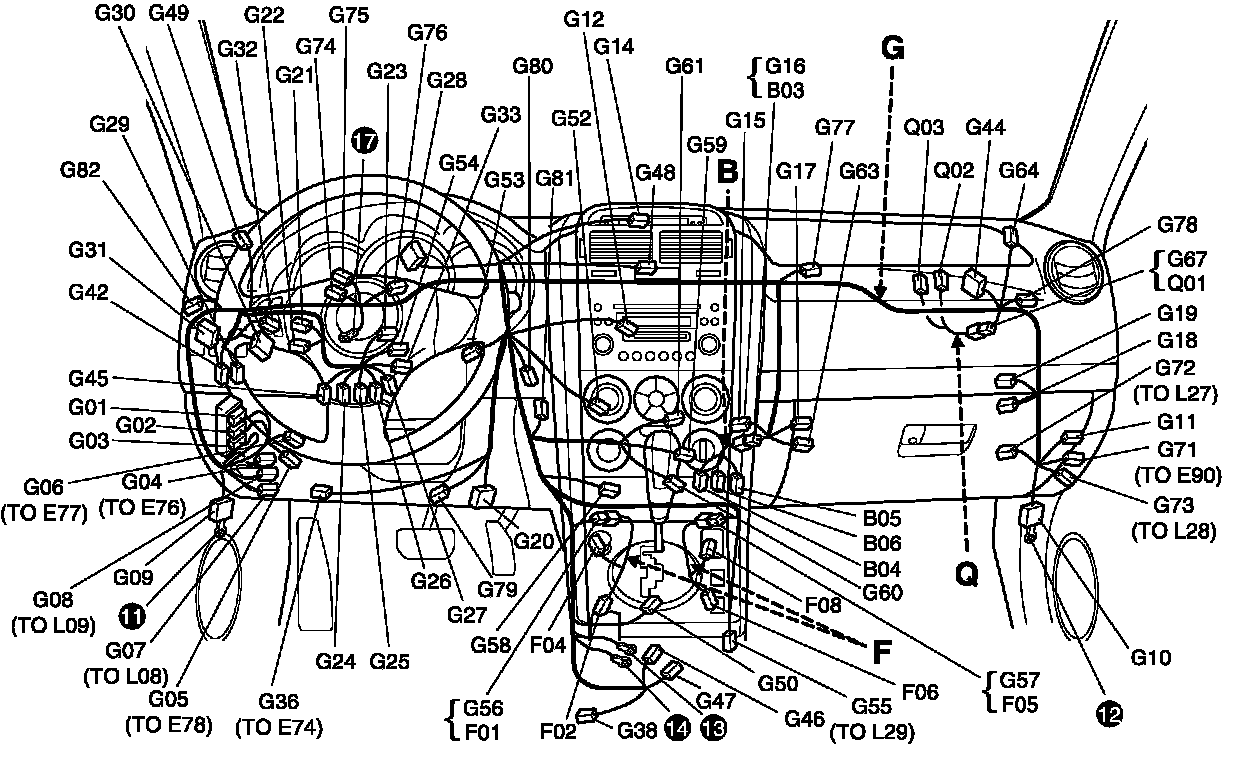

B: A/C Wire / F: Console Wire / G: Instrument Panel Harness / Q: A/B Wire View:
Q: A/B Wire Index:
