E Connectors

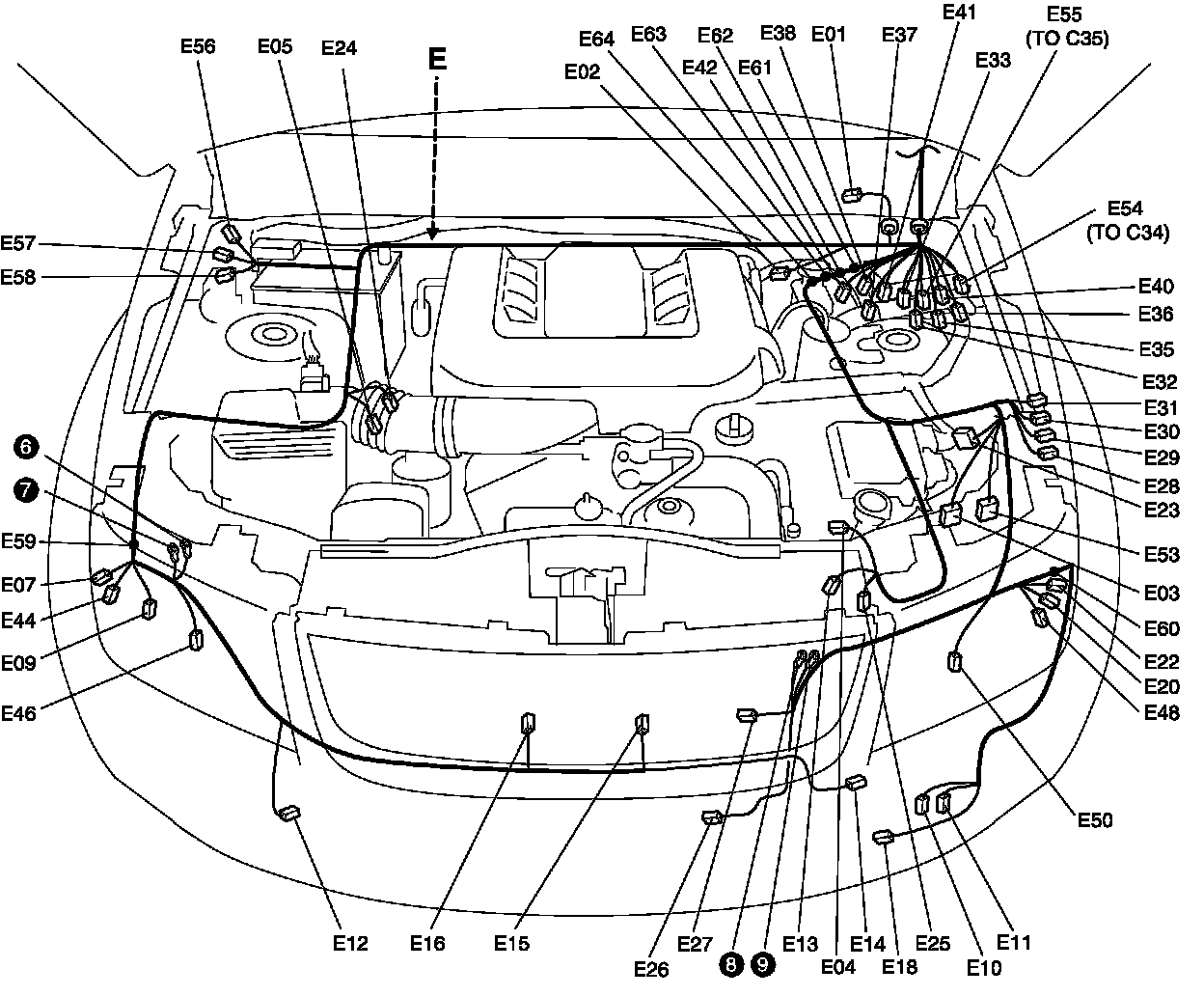

E: Main Harness View:

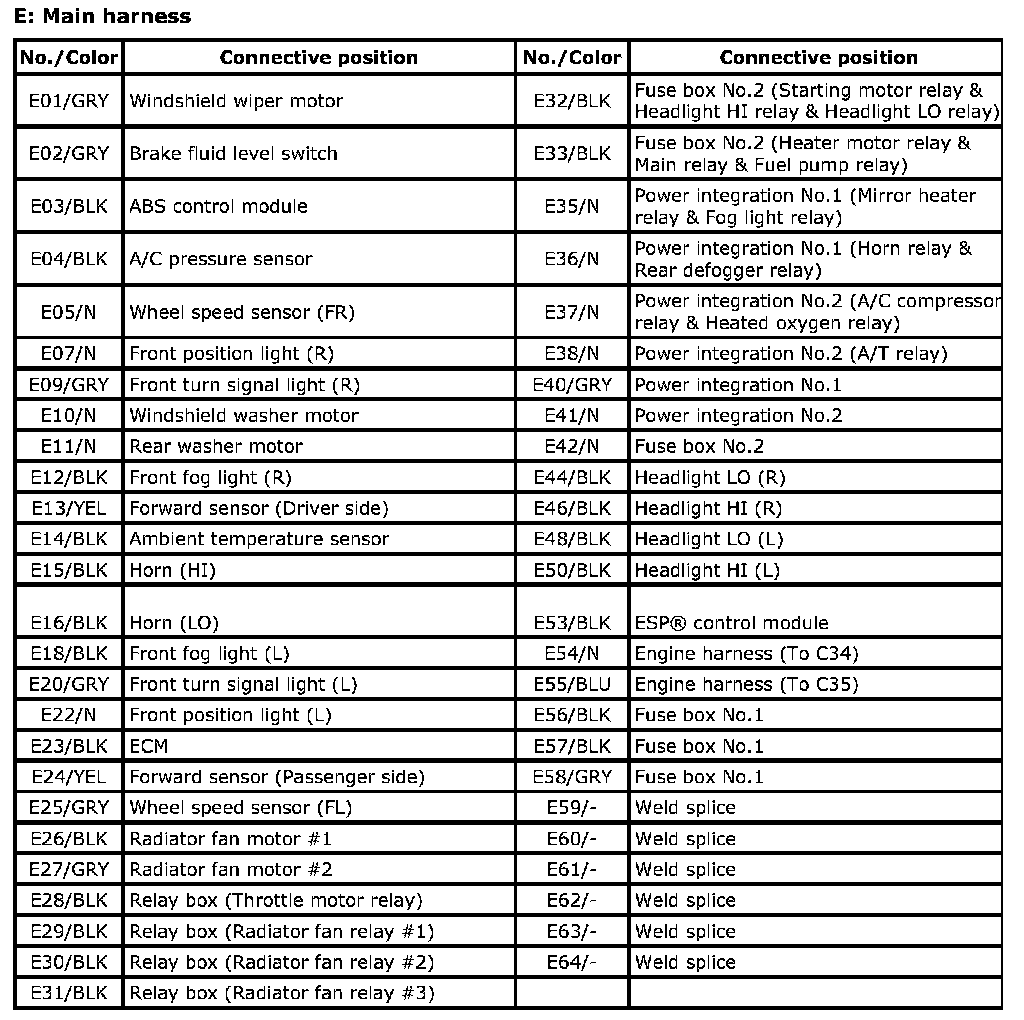

E: Main Harness Index:

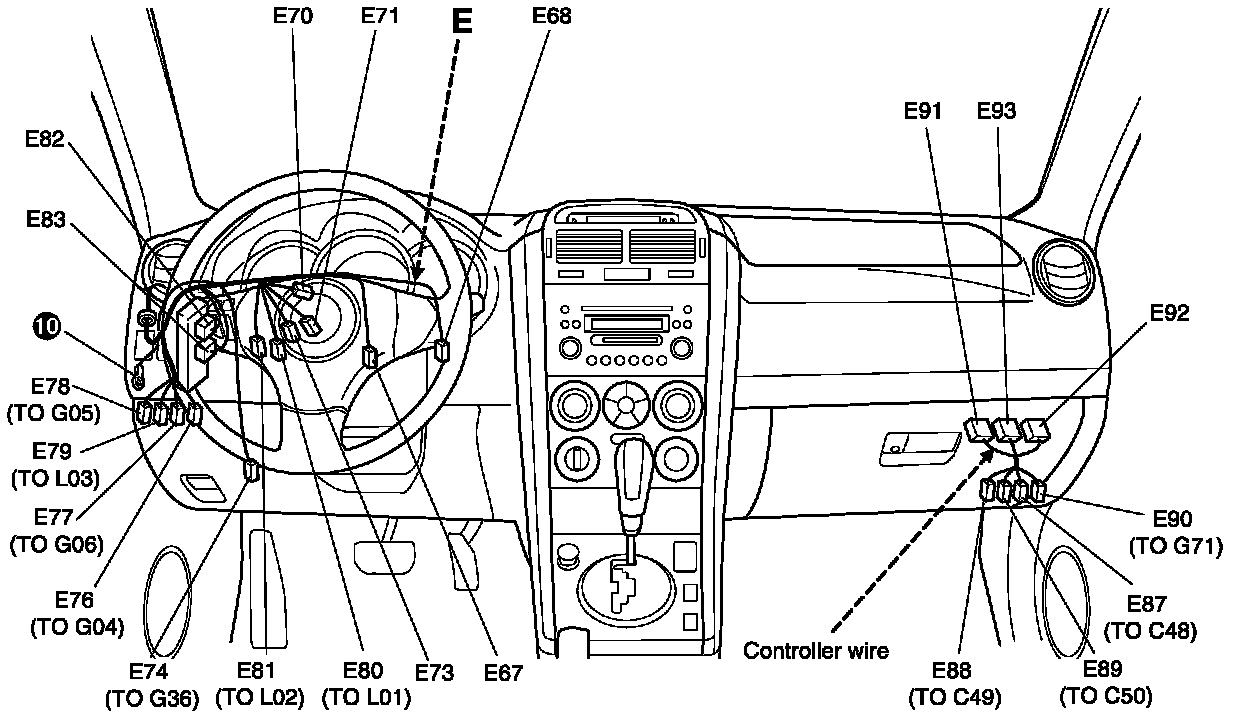

E: Main Harness, Controller Wire View:



E: Main Harness Index:



E: Controller Wire Index:
