Cylinder Head Assembly

Valves and Cylinder Heads Components

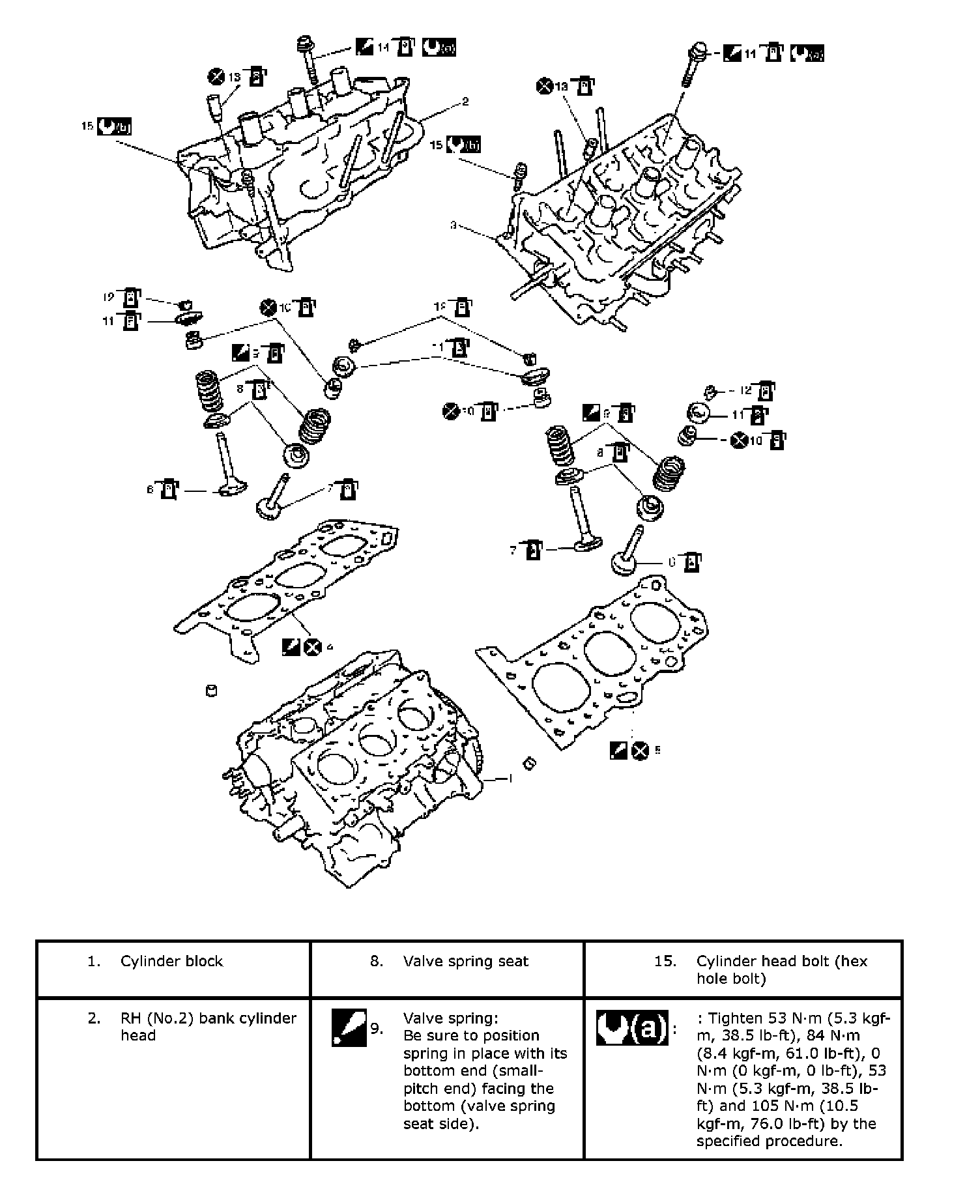

Valves and Cylinder Heads Components 1:




Valves and Cylinder Heads Components 2:
