Junction Block Inner Circuit (Overview)

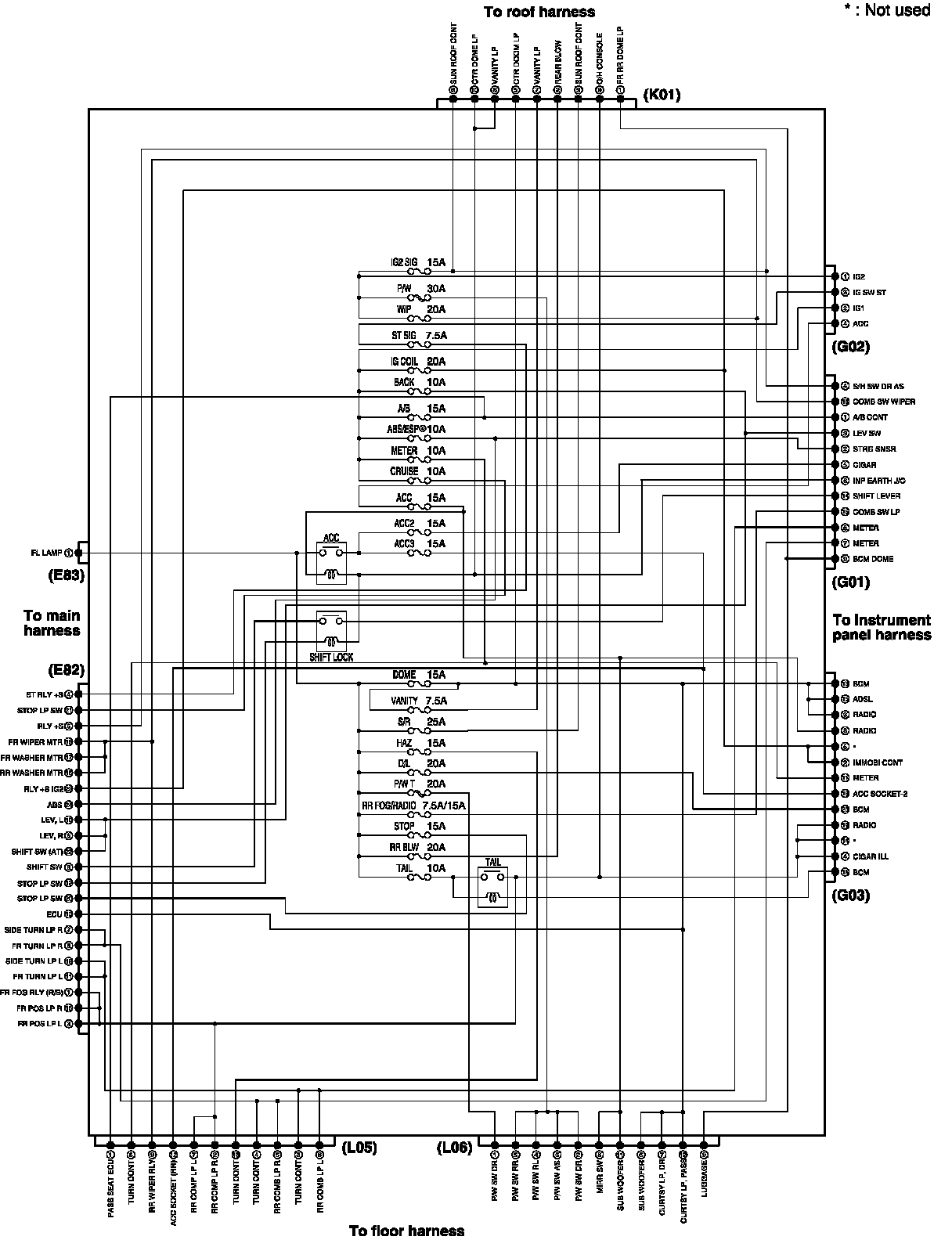

Junction Block Inner Circuit (OverView):

Junction Block Inner Circuit (OverView):
