Rear Wheel Encoder

Rear Wheel Encoder Removal and Installation

CAUTION: Rear wheel encoder is included in rear wheel hub assembly. If rear wheel encoder needs to replaced, replace it as a rear wheel hub assembly.

For removal and installation of front wheel hub assembly, referring to Rear Wheel Hub Assembly Removal and Installation.

Rear Wheel Encoder On-Vehicle Inspection
Before inspect rear wheel encoder, remove rear drive shaft referring to Rear Drive Shaft Assembly Removal and Installation:Rear.

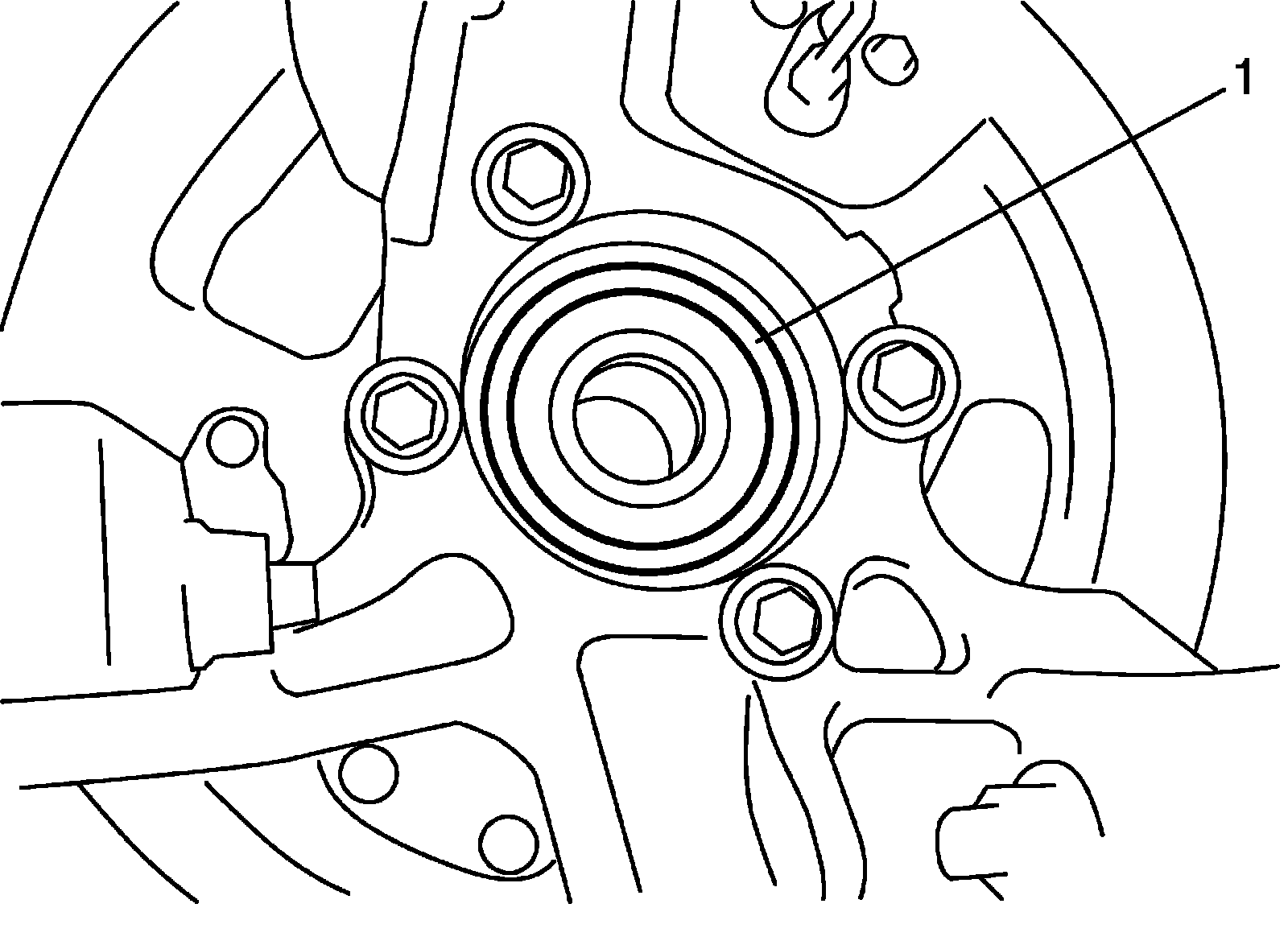

^ Check encoder (1) for being crack, damaged or deformed.
^ Turn wheel and check if encoder rotation is free from eccentricity and looseness.
^ Check that no foreign material is attached.
If any faulty is found, repair or replace.
