Antilock Brakes / Traction Control Systems: Service and Repair

ESP(R) OFF Switch Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove center garnish with audio unit (if equipped) and HVAC control module referring to Audio Unit Removal and Installation.
3. Remove HVAC control module from center garnish, referring to HVAC Control Module Removal and Installation.

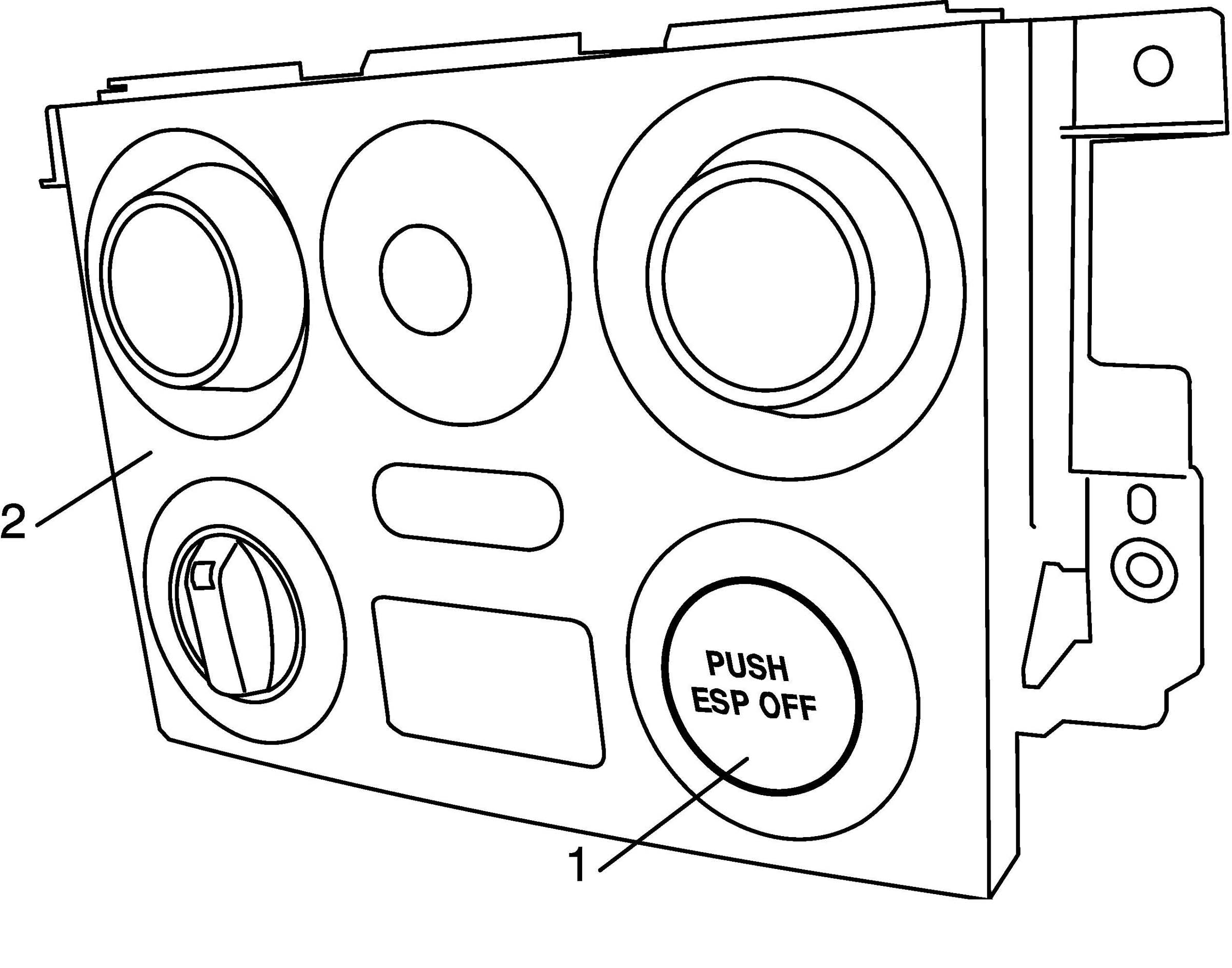

4. Remove ESP(R) OFF Switch (1) from center garnish (2).





Installation
Reverse removal procedure.

ESP(R) OFF Switch Inspection

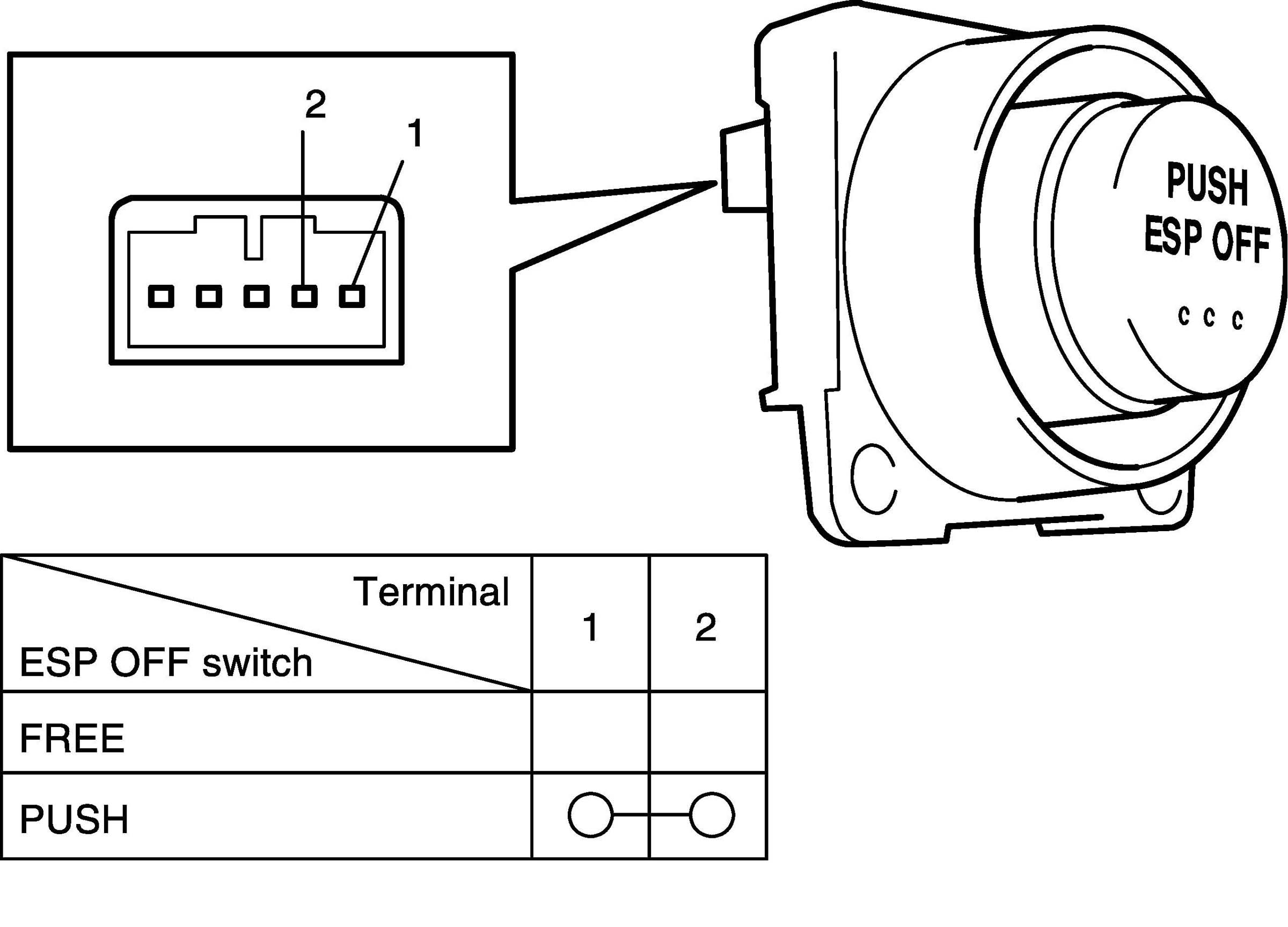

Check for continuity between terminals at each switch position.
If check result is not as specified, replace ESP(R) OFF switch.
