P2103

DTC P2103: Throttle Actuator Control Motor Circuit High

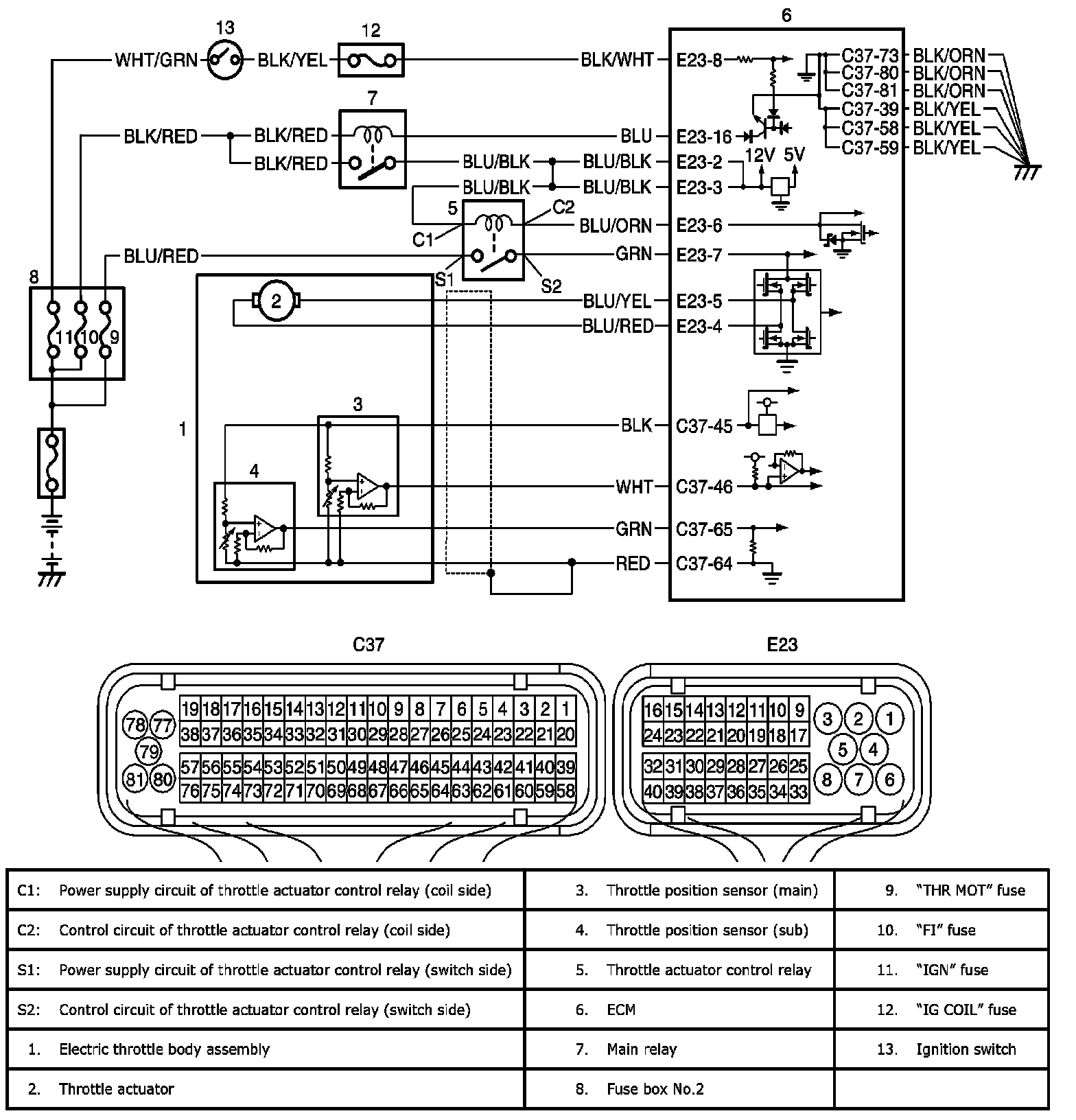

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. With ignition switch turned OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Keep ignition switch is at ON position for 5 seconds or longer.
4. Check DTC by using scan tool.

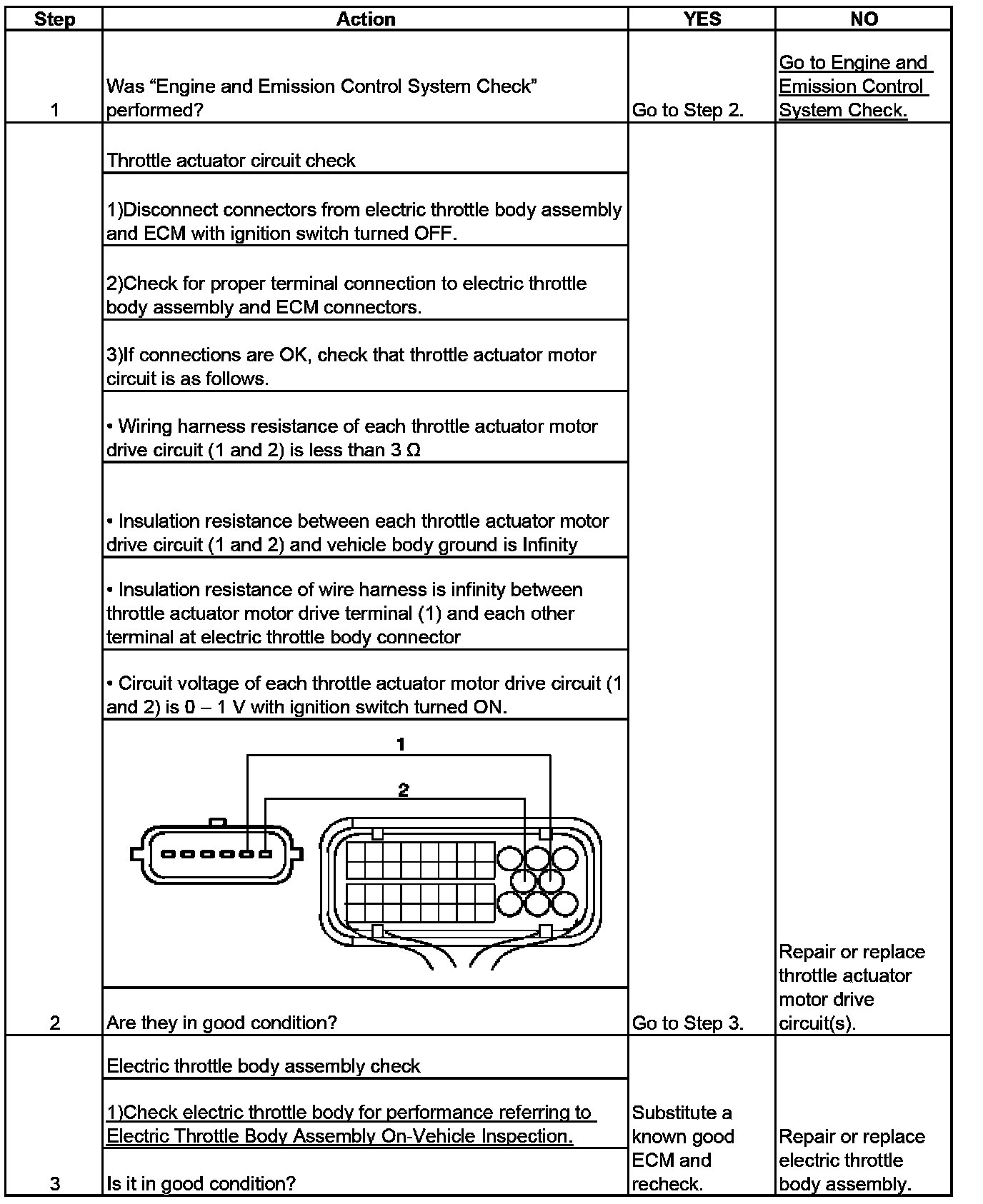

Step 1-3:

DTC Troubleshooting

NOTE: Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to Precautions for DTC Troubleshooting.
