P1621

DTC P1621: Immobilizer Communication Line Error

Immobilizer Control System Wiring Diagram:





Detecting Condition and Trouble Area:




Detecting Condition and Trouble Area

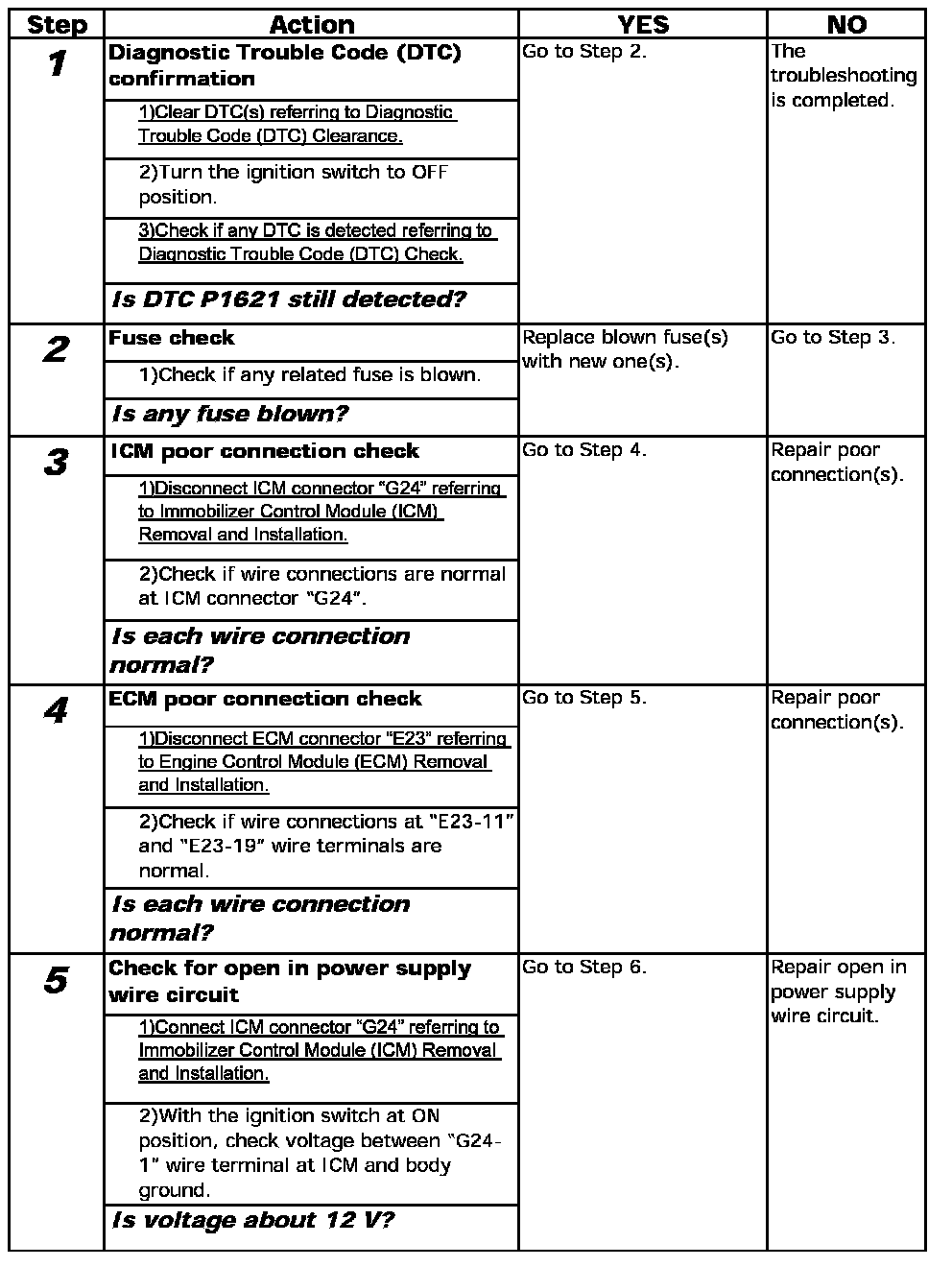

Step 1-5:

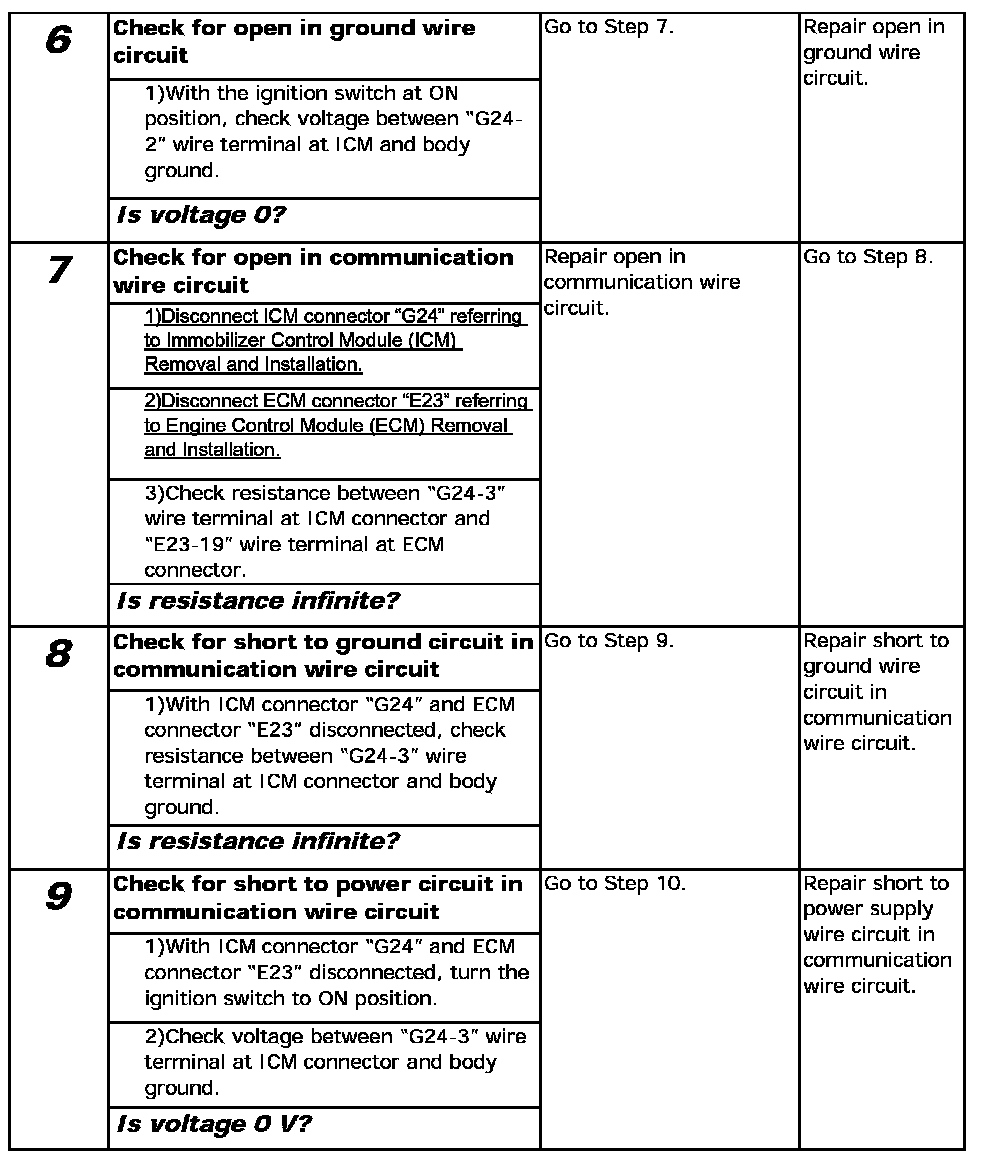

Step 6-9:

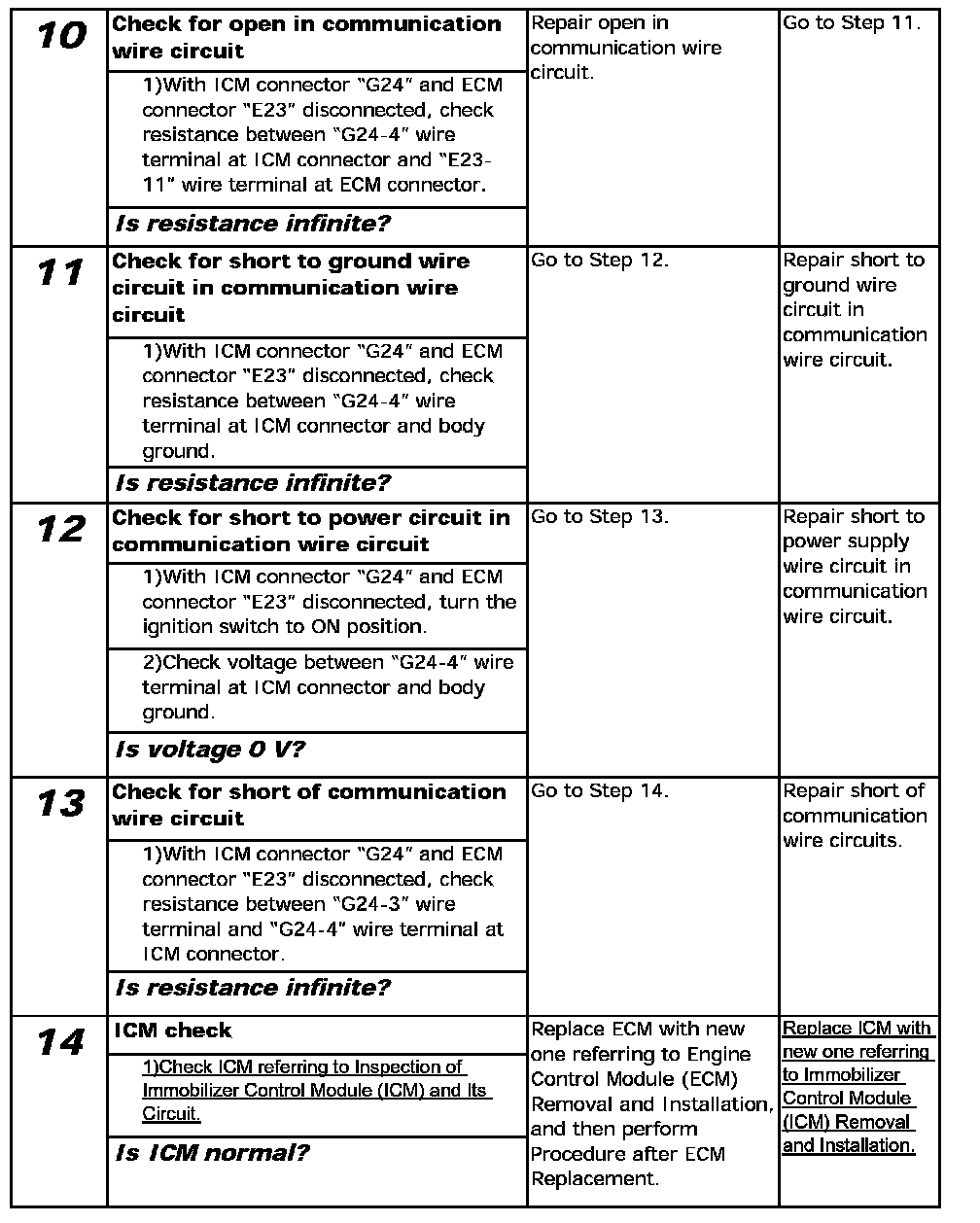

Step 10-14:




Troubleshooting
