P0464

DTC P0464: Fuel Level Sensor Circuit Intermittent

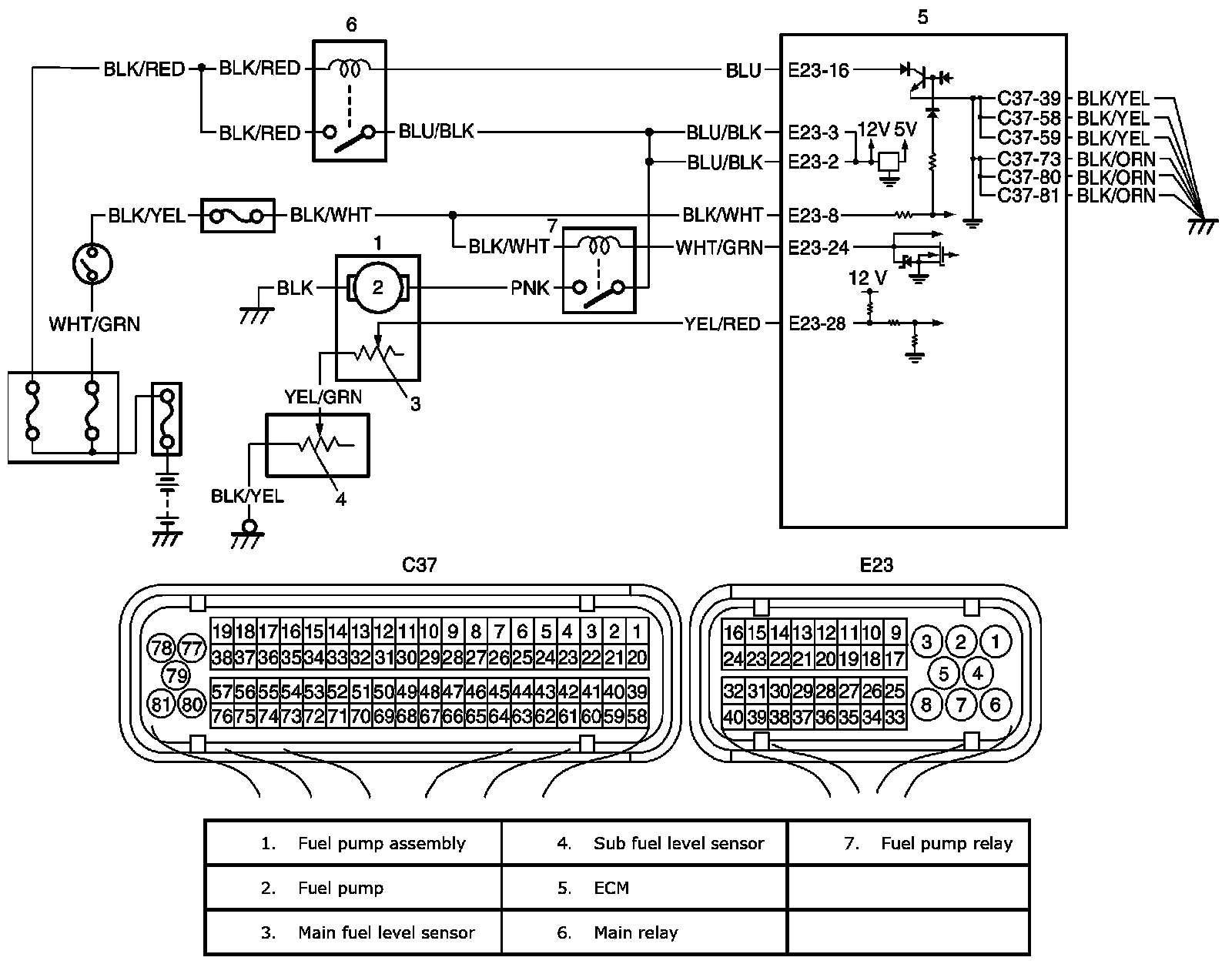

System / Wiring Diagram:

System / Wiring Diagram

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

NOTE: Make sure that DTC of fuel level sensor (other than P0464.is not detected.

1. With ignition switch OFF, connect scan tool to DLC.
2. Turn ON ignition switch and clear DTC using scan tool.
3. Start engine and run engine at idle speed for 1 minute or more.
4. Check DTC and pending DTC.

Step 1-3:

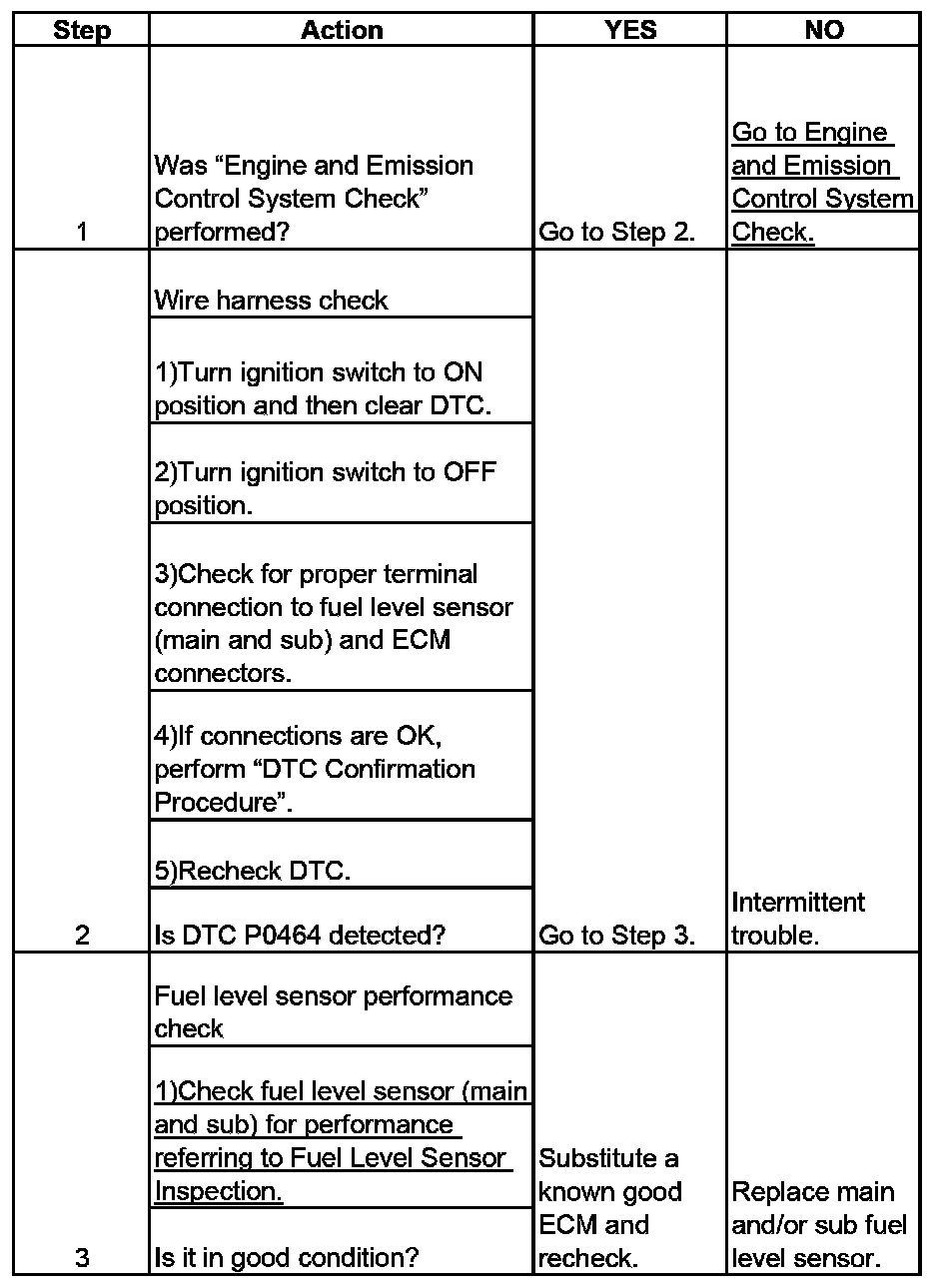

DTC Troubleshooting
