P0113

DTC P0112 / P0113: Intake Air Temperature Sensor Circuit Low / High Input

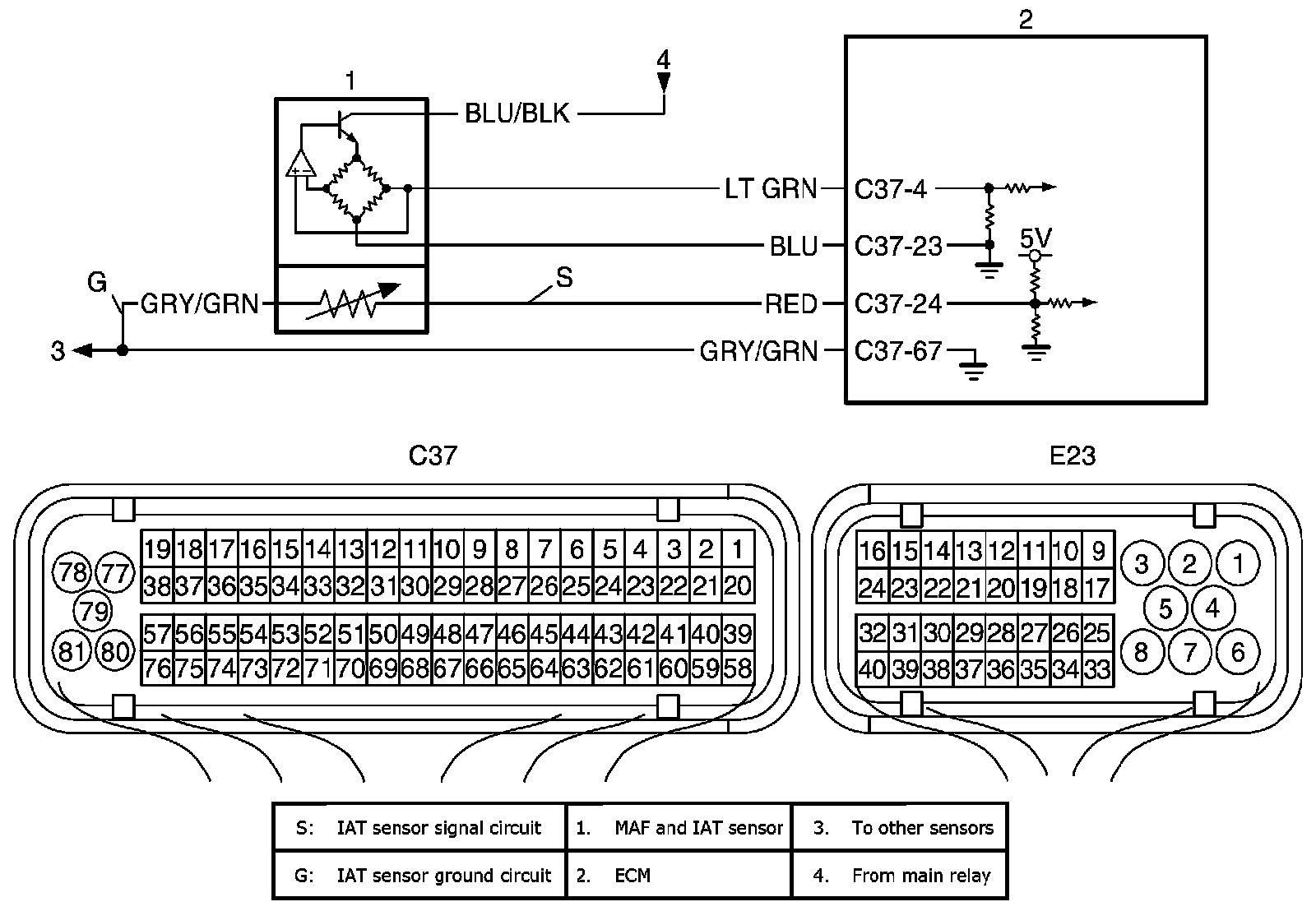

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. With ignition switch OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Start engine and run it for 10 sec.
4. Check DTC by using scan tool.

Step 1-2:

Step 3-4:

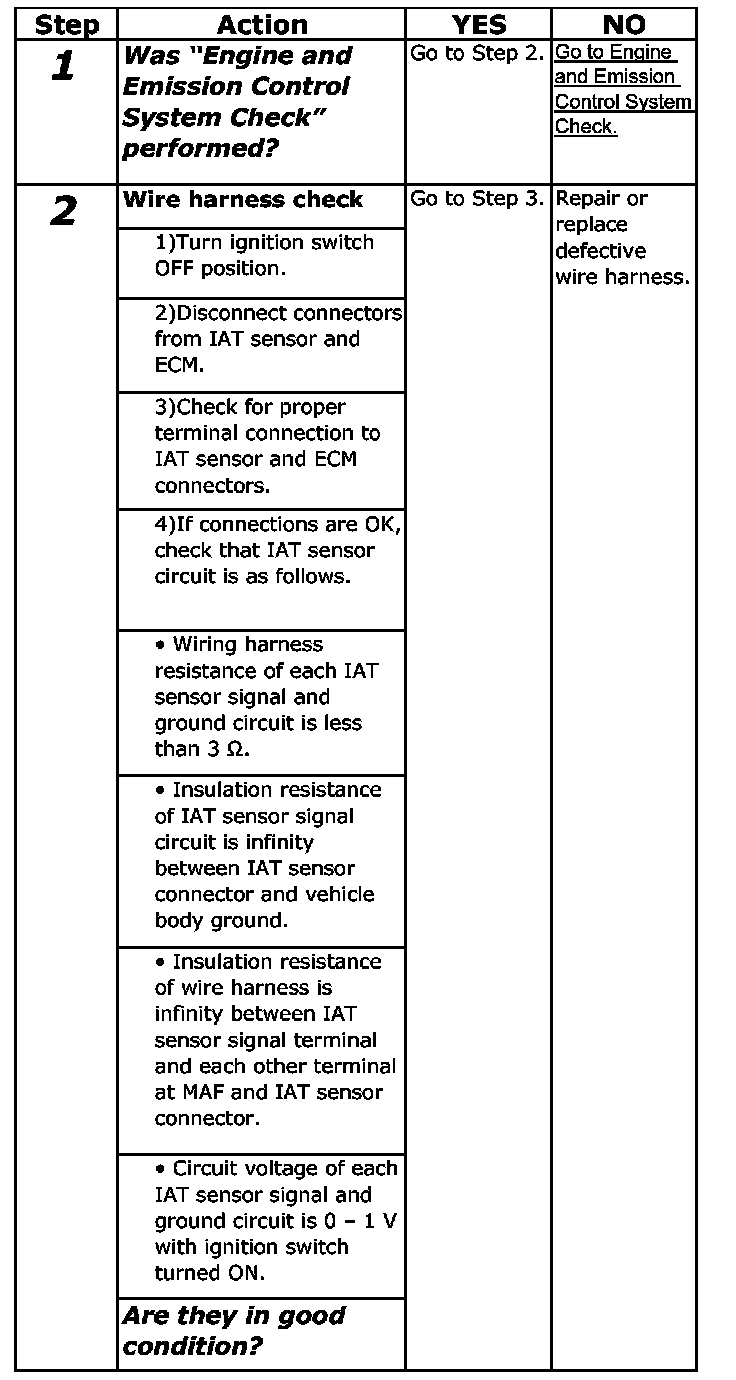

DTC Troubleshooting

NOTE: Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to Precautions for DTC Troubleshooting.
