A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transmission
>>
DTC Table
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

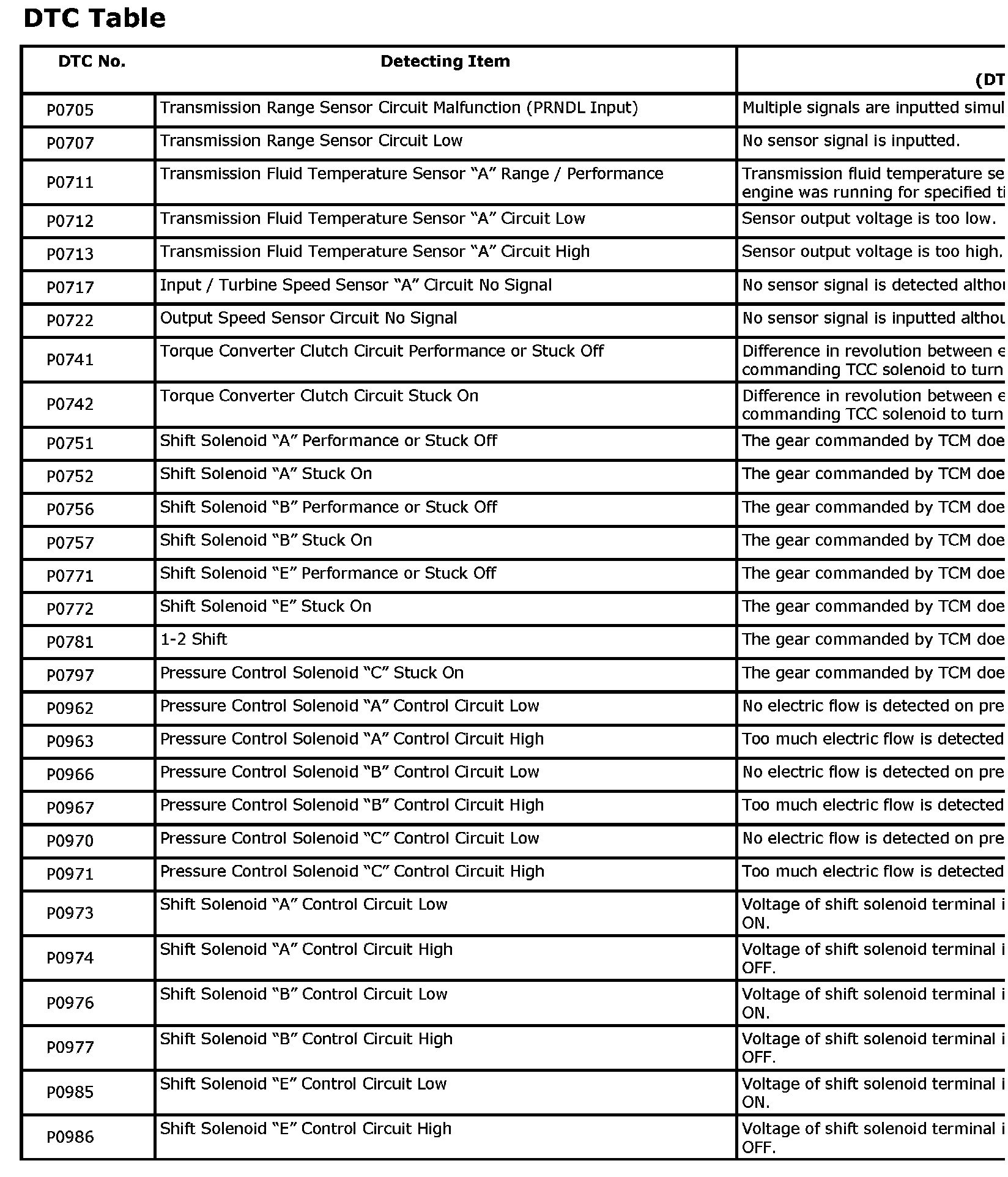

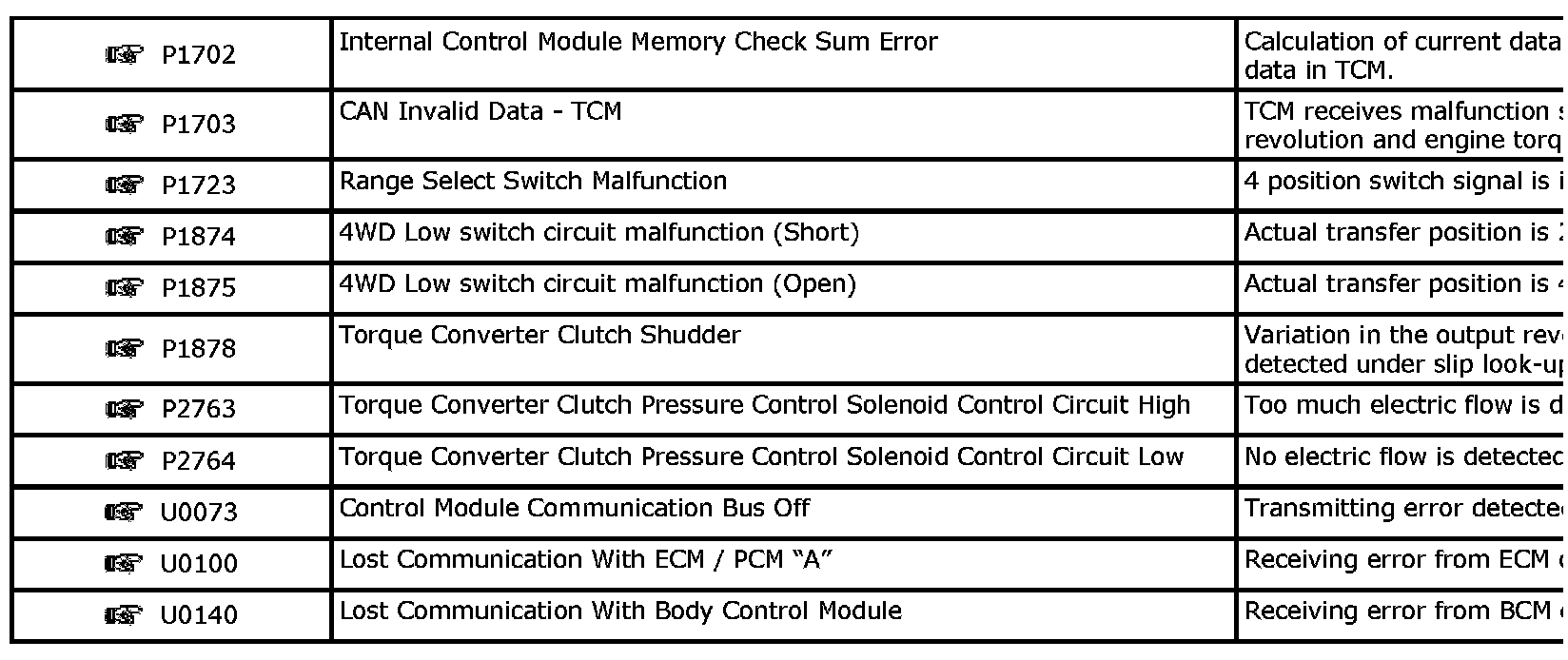

DTC Table
DTC Table
d�:
EN:
NOTE:
*1: TCM does not output MIL ON signal to combination meter but DTC is stored in TCM.
